  9. Pressure Transducer, 0 to 60psi, 4 to 20mA

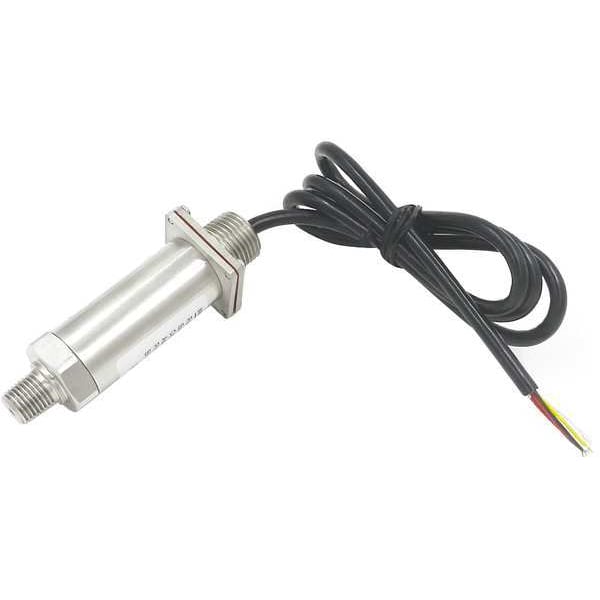

Westward Pressure Transducer, 0 to 60psi, 4 to 20mA 40TM26 - main

Pressure Transducer, 0 to 60psi, 4 to 20mA

  • Mfr # 40TM26

  • Zoro # G4366139

product price: $297.99
/ea
Free Shipping & Returns

Key Features

Output
4 to 20mA DC
Accuracy
+/-1%
Electrical Connections
Cable & Wire Leads
Features
High Accuracy and Stability
Housing
304 Stainless Steel
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
40TM26
Zoro #
G4366139
UPC #
190735987452
Country of Origin
China

Dimensions

Process Connection Size - Transmitter
1/4 in
Manufacturers Warranty Length
1 yr
Lead Length (In.)
39
Process Connection Size
1/4 in

Details

Item
Pressure Transmitter
Output
4 to 20mA DC
Accuracy
+/-1%
Electrical Connections
Cable & Wire Leads
Features
High Accuracy and Stability
Housing
304 Stainless Steel
Power Required
9 to 36V DC
Safety Rating
IP65
For Use With
Liquids and Gas Compatible with Stainless Steel and Ceramic
Power Required - Transmitters
9 to 36V DC
Range Values - Transmitter
0 to 60
Wiring Entry - Transmitter
1/2 in FNPT
Range Units - Transmitter
psi
Range
0 to 60 psi
Wetted Materials - Transmitters
316 Stainless Steel, Ceramic
Wetted Materials
316 Stainless Steel, Ceramic
Pressure Range (In. WC)
0 to 1660
Thermal Error
+/-0.04% Full Scale / Degrees F
Process Connection Type - Transmitter
MNPT
Compatible With
Stainless Steel and Ceramic
Electrical Connections - Transmitter
Shielded Cable
Loop Resistance
0 to 1182 ohms
Output - Transmitter
4 to 20mA DC
Accuracy - Transmitter
+/-1.00%
Transmitter Type
Pressure Transmitter
Max. Pressure (PSI)
60 psi
Operating Temp.
-20 Degrees to 180 Degrees F
Operating Temp. - Transmitter
-20 Degrees to 180 Degrees F
Intrinsically Safe
No
Maximum Pressure
60 psi
Wiring Entry
1/2 in FNPT Conduit Connection
Pressure Units
psi
Cable Coating
Shielded Cable
Maximum Loop Resistance
0 to 1,182 Ohm
Minimum Pressure
0 psi
Process Connection Type
NPT
Explosion/Fire Proof
No
For Use With Media Type
Gas, Liquid
Minimum Operating Temperature
-20 Degrees F
Housing Material
304 Stainless Steel
Electrical Connection
Cable & Wire Leads
Maximum Operating Temperature
180 Degrees F
Process Connection Gender
Male
Pressure Measurement - Minimum
0 psi
Loop Resistance - Maximum
0 to 1,182 Ohm
Output Power
4 to 20mA DC
Process Media Temperature - Minimum
-20 Degrees F
Input Voltage
9 to 36V DC
Pressure Measurement - Maximum
60 psi
Intrinsic Safety
Not Specified Intrinsically Safe
Process Media Temperature - Maximum
180 Degrees F

Description

Pressure Transmitter, Minimum Pressure 0 psi, Maximum Pressure 60 psi, Electrical Connections Cable & Wire Leads, Output 4 to 20mA DC, Accuracy +/-1 Percent, Process Connection Gender Male, Process Connection Size 1/4 in, Process Connection Type NPT, Power Required 9 to 36V DC, Wiring Entry 1/2 in FNPT Conduit Connection, Maximum Operating Temperature 180 Degrees F, Minimum Operating Temperature -20 Degrees F, Housing Material 304 Stainless Steel, Safety Rating IP65, Cable Coating Shielded Cable
