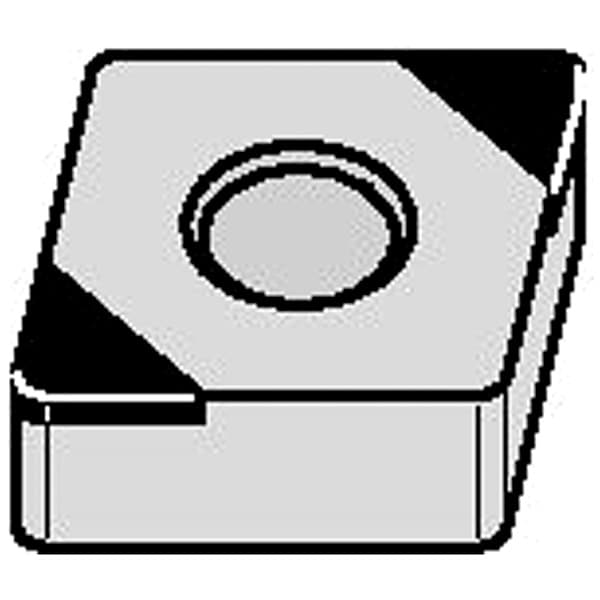

Widia CBN NEGATIVE INSERT, 4, CNGA, 3 CNGA433S0425MT WBH20P - main

CBN NEGATIVE INSERT, 4, CNGA, 3

  • Mfr # CNGA433S0425MT WBH20P

  • Zoro # G005905796

product price: $114.99
/ea
Free Shipping & Returns

Key Features

Insert Style
CNGA
Inscribed Circle
4
Corner Radius
3
Rake
Negative
ISO Number
CNGA120412S01025MT
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
CNGA433S0425MT WBH20P
Zoro #
G005905796
UPC #
-
Country of Origin
United States

Dimensions

Corner Radius
3
Depth of Cut
0.1883 in
Cutting Edge Length
0.5077 in
Thickness
3
Through Hole Inside Dia.
0.2031 in

Details

Item
CBN NEGATIVE INSERT
Insert Style
CNGA
Inscribed Circle
4
Rake
Negative
ISO Number
CNGA120412S01025MT
Cutting Direction
Neutral
Features
Better Wear Resistance, High Speed and Feed Capability, Long Tool Life, Multi-Layer Coating, Reduce Cycle Times
Clearance Angle
0 Degrees
Finish - Machining
AlTiN
Shape
Rhomboid
Standards
ANSI, ISO
Number of Cutting Edges
2
Material - Machining
CBN
Cutting Application
Turning
Measurement System
Decimal Inch
Insert Holding Type
2-Cylindrical Fixing Hole
Included Angle
80 Degrees
Primary Material Application
Hardened Steel
Coating Process
PVD
Primary Material Application ISO Code
H
Manufacturer Grade
WBH20P
ANSI Code
CNGA433S0425MT
Material Grade - Machining
CBN
General Shape
Rhomboid
Coolant Fed
Non-Coolant Through

Description

Negative Insert

Restrictions

WARNING: Cancer For more information go to www.P65Warnings.ca.gov
