  11. CBN NEGATIVE INSERT, 4, DNMA, 1

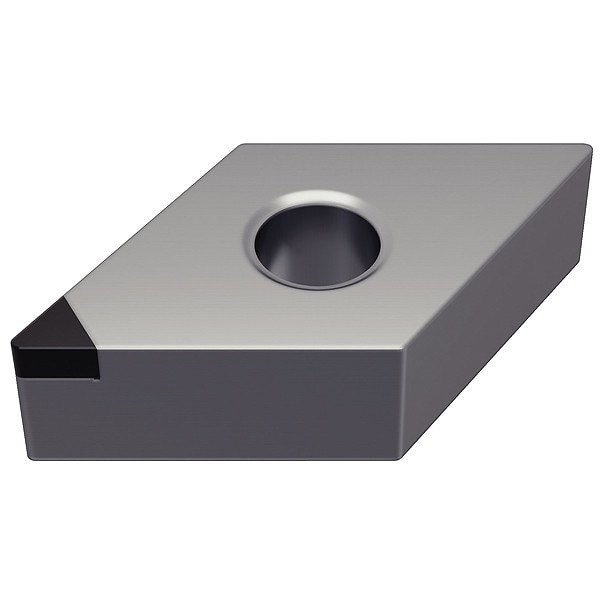

Widia CBN NEGATIVE INSERT, 4, DNMA, 1 DNMA441S0420ST WBH20P - main

CBN NEGATIVE INSERT, 4, DNMA, 1

  • Mfr # DNMA441S0420ST WBH20P

  • Zoro # G505906293

product price: $114.99
/ea
Free Shipping & Returns

Key Features

Insert Style
DNMA
Inscribed Circle
4
Corner Radius
1
Rake
Negative
ISO Number
DNMA150604S01020ST
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
DNMA441S0420ST WBH20P
Zoro #
G505906293
UPC #
-
Country of Origin
United States

Dimensions

Corner Radius
1
Through Hole Inside Dia.
0.2031 in
Cutting Edge Length
0.6104 in
Depth of Cut
0.25 in
Thickness
4

Details

Item
CBN NEGATIVE INSERT
Insert Style
DNMA
Inscribed Circle
4
Rake
Negative
ISO Number
DNMA150604S01020ST
Cutting Direction
Neutral
Standards
ANSI, ISO
Coolant Fed
Non-Coolant Through
Measurement System
Decimal Inch
Material Grade - Machining
CBN
Clearance Angle
0 Degrees
Shape
Rhomboid
ANSI Code
DNMA441S0420ST
General Shape
Rhomboid
Included Angle
55 Degrees
Manufacturer Grade
WBH20P
Number of Cutting Edges
1
Features
Better Wear Resistance, High Speed and Feed Capability, Long Tool Life, Multi-Layer Coating, Reduce Cycle Times
Finish - Machining
AlTiN
Primary Material Application ISO Code
H
Material - Machining
CBN
Coating Process
PVD
Cutting Application
Turning
Insert Holding Type
2-Cylindrical Fixing Hole
Primary Material Application
Hardened Steel

Description

CBN NEGATIVE INSERT, Chip-Breaker Code Not Applicable, Inscribed Circle 0.5 in, AlTiN, ANSI Code DNMA441S0420ST, Clearance Angle 0 Degrees , Coating Process PVD
