  11. Corner Chamfer End Mill, 3 mm, Carbide

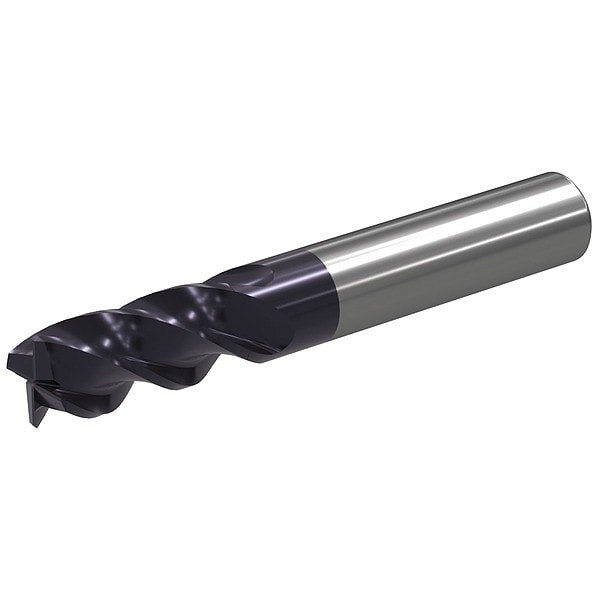

Widia Corner Chamfer End Mill, 3 mm, Carbide W401M03003CAT WU20PE - main

Corner Chamfer End Mill, 3 mm, Carbide

  • Mfr # W401M03003CAT WU20PE

  • Zoro # G605905080

product price: $27.29
/ea

Key Features

Number of Flutes
4
Overall Length
57 mm
Shank Dia.
6 mm
Length of Cut
8 mm
End Mill Style
Corner-Chamfer
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
W401M03003CAT WU20PE
Zoro #
G605905080
UPC #
-
Country of Origin
Viet Nam

Dimensions

Overall Length
57 mm
Shank Dia.
6 mm
Length of Cut
8 mm
Milling Dia.
3 mm
Shank Length
42.9 mm
Chamfer Width
0.2 mm

Details

Item
Corner Chamfer End Mill
Number of Flutes
4
End Mill Style
Corner-Chamfer
Single End/Double End
Single
Chamfer Angle
45 Degrees
Helix Angle
39 Degrees
List Number
W401
Series
WCE4
Cutting Direction
Right Hand
Spiral Direction
Right Hand
End Mill Application
Blank Ramping, Helical Milling, Side Milling, Square End Shoulder Milling, Square End Slotting
End Mill Cutting Type
Center Cutting
Max. Helix Angle
39 Degrees
Material Applications
Cast Iron, Hardened Material, High-Temperature Alloy, Stainless Steel, Steel
Min. Helix Angle
37 Degrees
Material - Machining
Carbide
Primary Material Application ISO Code
K, M, P
Primary Material Application
Cast Iron, Stainless Steel, Steel
Secondary Material Application ISO Code
H, S
Finish - Machining
TiAlN
Secondary Material Application
Hardened Material, High-Temperature Alloy
Flute Type
Spiral
Coolant Fed
Non-Coolant Through
Material Grade - Machining
WU20PE
Shank Type - Machining
Straight
Drilling Tool Configuration
Individual
Measurement System
Metric
Flute Spacing
Variable

Description

Corner Chamfer End Mill, 3 mm Milling Dia., Carbide, TiAlN, Non-Coolant Through, Straight, Metric, 45 Degrees , 0.2 mm, 8 mm
