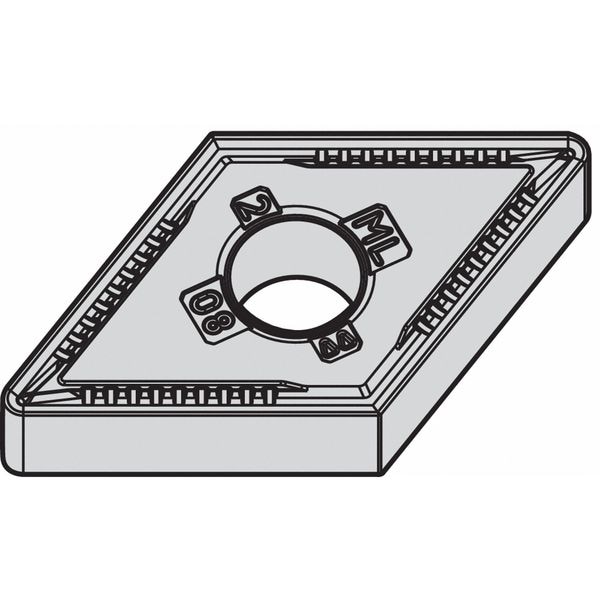

Widia Diamond Turning Insert, Diamond, 3, DNMG, 1, Carbide DNMG331ML - main

Diamond Turning Insert, Diamond, 3, DNMG, 1, Carbide

  • Mfr # DNMG331ML

  • Zoro # G2812280

product price: $9.29
/ea
Sold in multiples of 10 for $92.90

Key Features

Insert Shape
Diamond
Insert Style
DNMG
Inscribed Circle
3
Insert Size
331
Chip-Breaker
Yes
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
DNMG331ML
Zoro #
G2812280
UPC #
-
Country of Origin
India

Dimensions

Insert Size
331
Corner Radius
1
Nose Radius
0.016"
Mounting Hole Dia.
0.1500"
Insert Thickness
0.1875"
Thickness
3
Cutting Edge Length
11.63mm

Details

Item
Diamond Turning Insert
Insert Shape
Diamond
Insert Style
DNMG
Inscribed Circle
3
Chip-Breaker
Yes
Grade
WP15CT
Insert Material
Carbide
Insert Application
Medium
Rake
Negative
ISO Number
DNMG110404ML
Super Alloy (S) Compatibility
No
Hardened (H) Compatibility
No
Coating
Tin
For Use With
Toolholders, Boring Bars
Mounting Style
Clamp
Cast Iron (K) Compatibility
Yes
Cutting Direction
Neutral
ANSI Number
DNMG331ML
Relief Angle
0 Degrees
Stainless (M) Compatibility
No
Non Ferrous (N) Compatibility
No
Steel (P) Compatibility
Yes
No. of Edges
4
Workpiece Compatibility
Cast Iron (K), Steel (P)
Secondary Material Application
Steel
Clearance Angle
0 Degrees
Shape
Rhombic
Finish - Machining
TiN
Number of Cutting Edges
4
Primary Material Application ISO Code
K
Chip-Breaker Code
ML
Secondary Material Application ISO Code
P
Primary Material Application
Cast Iron
Included Angle
55 Degrees
Chip-Breaker Style
On Two Sides
Manufacturer Grade
WP15CT
Insert Holding Type
Straight Hole
Measurement System
Fractional Inch
ANSI Code
DNMG331ML
Cutting Application
Turning
Material - Machining
Carbide
Material
Carbide
Style
DNMG
Coolant Fed
Non-Coolant Through

Description

Diamond Turning Insert, Chip-Breaker Code ML, Inscribed Circle 3/8 in, TiN, ANSI Code DNMG331ML, Chip-Breaker Style On Two Sides, Clearance Angle 0 Degrees
