  11. Diamond Turning Insert, Diamond, 4, DNGP, 1, Carbide

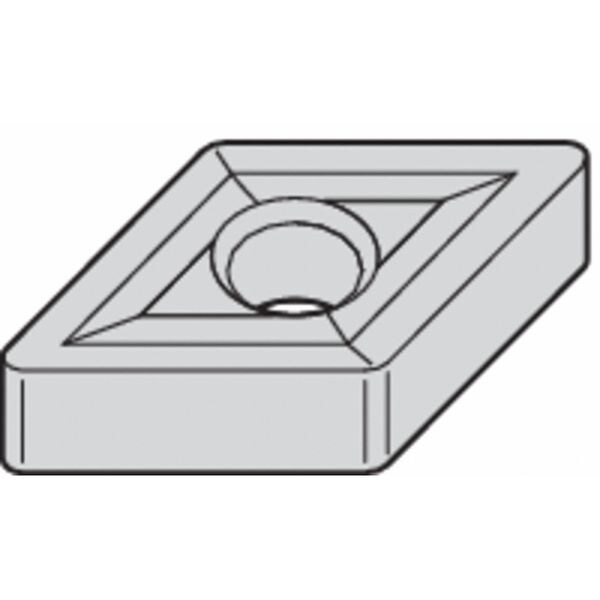

Widia Diamond Turning Insert, Diamond, 4, DNGP, 1, Carbide DNGP431 - main

Diamond Turning Insert, Diamond, 4, DNGP, 1, Carbide

  • Mfr # DNGP431

  • Zoro # G2909879

product price: $16.19
/ea
Sold in multiples of 5 for $80.95

Key Features

Insert Shape
Diamond
Insert Style
DNGP
Inscribed Circle
4
Insert Size
431
Chip-Breaker
Yes
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
DNGP431
Zoro #
G2909879
UPC #
-
Country of Origin
United States

Dimensions

Insert Size
431
Corner Radius
1
Insert Thickness
0.1875"
Nose Radius
0.016"
Mounting Hole Dia.
0.203"
Thickness
3
Cutting Edge Length
15.50mm

Details

Item
Diamond Turning Insert
Insert Shape
Diamond
Insert Style
DNGP
Inscribed Circle
4
Chip-Breaker
Yes
Grade
TN10U
Insert Material
Carbide
Insert Application
Medium
Rake
Negative
ISO Number
DNGP150404
Stainless (M) Compatibility
Yes
For Use With
Toolholders, Boring Bars
Cast Iron (K) Compatibility
Yes
ANSI Number
DNGP431
Mounting Style
Clamp
Workpiece Compatibility
Cast Iron (K), Nonferrous (N), Stainless (M), Steel (P), Super Alloy (S)
Coating
AlTiN
No. of Edges
2
Relief Angle
0 Degrees
Cutting Direction
Neutral
Non Ferrous (N) Compatibility
Yes
Steel (P) Compatibility
Yes
Hardened (H) Compatibility
No
Super Alloy (S) Compatibility
Yes
Primary Material Application ISO Code
M, S
Measurement System
Fractional Inch
Insert Holding Type
Straight Hole
ANSI Code
DNGP431
Material - Machining
Carbide
Shape
Rhombic
Cutting Application
Turning
Secondary Material Application
Aluminum, Brass, Bronze, Cast Iron, Copper, Steel
Clearance Angle
0 Degrees
Secondary Material Application ISO Code
K, N, P
Manufacturer Grade
TN10U
Chip-Breaker Style
On One Side
Finish - Machining
AlTiN
Included Angle
55 Degrees
Number of Cutting Edges
2
Primary Material Application
Nickel, Stainless Steel, Titanium
Material
Carbide
Style
DNGP
Coolant Fed
Non-Coolant Through

Description

Diamond Turning Insert, Inscribed Circle 1/2 in, AlTiN, ANSI Code DNGP431, Chip-Breaker Style On One Side, Clearance Angle 0 Degrees
