  11. Diamond Turning Insert, Diamond, 5, CNMG, 2, Carbide

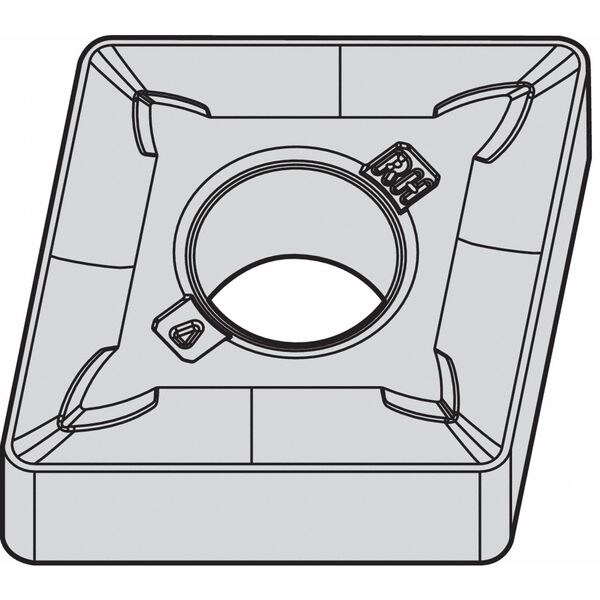

Widia Diamond Turning Insert, Diamond, 5, CNMG, 2, Carbide CNMG542RH - main

Diamond Turning Insert, Diamond, 5, CNMG, 2, Carbide

  • Mfr # CNMG542RH

  • Zoro # G2811809

product price: $15.69
/ea
Sold in multiples of 10 for $156.90

Key Features

Insert Shape
Diamond
Insert Style
CNMG
Inscribed Circle
5
Insert Size
542
Chip-Breaker
Yes
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
CNMG542RH
Zoro #
G2811809
UPC #
-
Country of Origin
India

Dimensions

Insert Size
542
Corner Radius
2
Insert Thickness
0.2500"
Nose Radius
0.031"
Mounting Hole Dia.
0.250"
Cutting Edge Length
16.12mm
Thickness
4

Details

Item
Diamond Turning Insert
Insert Shape
Diamond
Insert Style
CNMG
Inscribed Circle
5
Chip-Breaker
Yes
Grade
WP15CT
Insert Material
Carbide
Insert Application
Roughing
Rake
Negative
ISO Number
CNMG160608RH
Stainless (M) Compatibility
No
ANSI Number
CNMG542RH
No. of Edges
8
Cast Iron (K) Compatibility
Yes
Cutting Direction
Neutral
Coating
Tin
Hardened (H) Compatibility
No
Non Ferrous (N) Compatibility
No
Mounting Style
Clamp
For Use With
Toolholders, Boring Bars
Workpiece Compatibility
Cast Iron (K), Steel (P)
Relief Angle
0 Degrees
Steel (P) Compatibility
Yes
Super Alloy (S) Compatibility
No
Secondary Material Application
Steel
Included Angle
80 Degrees
Primary Material Application
Cast Iron
ANSI Code
CNMG542RH
Secondary Material Application ISO Code
P
Finish - Machining
TiN
Cutting Application
Turning
Number of Cutting Edges
8
Primary Material Application ISO Code
K
Clearance Angle
0 Degrees
Chip-Breaker Code
RH
Measurement System
Fractional Inch
Material - Machining
Carbide
Manufacturer Grade
WP15CT
Shape
Rhombic
Chip-Breaker Style
On Two Sides
Insert Holding Type
Straight Hole
Material
Carbide
Style
CNMG
Coolant Fed
Non-Coolant Through

Description

Diamond Turning Insert, Chip-Breaker Code RH, Inscribed Circle 5/8 in, TiN, ANSI Code CNMG542RH, Chip-Breaker Style On Two Sides, Clearance Angle 0 Degrees
