  11. Diamond Turning Insert, Diamond, 5/32 in, CDHH, 1, Carbide

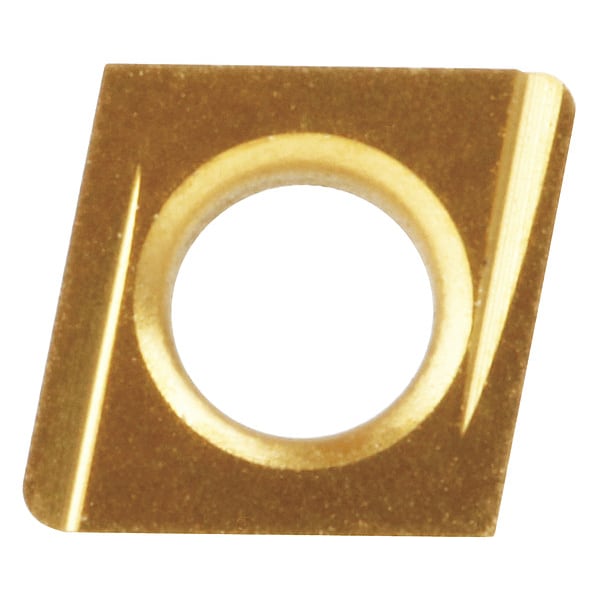

Widia Diamond Turning Insert, Diamond, 5/32 in, CDHH, 1, Carbide CDHH12061L - main

Diamond Turning Insert, Diamond, 5/32 in, CDHH, 1, Carbide

  • Mfr # CDHH12061L

  • Zoro # G3875223

product price: $21.19
/ea
Sold in multiples of 5 for $105.95

Key Features

Insert Shape
Diamond
Insert Style
CDHH
Inscribed Circle
5/32 in
Insert Size
0.1562"
Chip-Breaker
No
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
CDHH12061L
Zoro #
G3875223
UPC #
4021169353239
Country of Origin
United States

Dimensions

Insert Size
0.1562"
Corner Radius
1
Mounting Hole Dia.
0.0840"
Insert Thickness
0.0400"
Cutting Edge Length
4.03mm
Thickness
2.5

Details

Item
Diamond Turning Insert
Insert Shape
Diamond
Insert Style
CDHH
Inscribed Circle
5/32 in
Chip-Breaker
No
Grade
CG5
Insert Material
Carbide
ISO Number
CDHHS4T004L
Style
CDHH
Cutting Direction
Left Hand
Mounting Style
Taper Screw
Coating
TiN
Material - Machining
Carbide
Shape
Rhombic
Insert Holding Type
70 Degrees to 90 Degrees Countersink Hole
ANSI Code
CDHH12061L
Manufacturer Grade
CG5
Finish - Machining
TiN
Number of Cutting Edges
2
Primary Material Application
Aluminum, Brass, Bronze, Copper, Magnesium, Nickel, Stainless Steel, Steel, Titanium
Secondary Material Application
Cast Iron
Primary Material Application ISO Code
M, N, P, S
Cutting Application
Turning
Measurement System
Fractional Inch
Secondary Material Application ISO Code
K
Included Angle
80 Degrees
Clearance Angle
15 Degrees
Material
Carbide
Coolant Fed
Non-Coolant Through

Description

Diamond Turning Insert, Inscribed Circle 5/32 in, TiN, ANSI Code CDHH12061L, Clearance Angle 15 Degrees
