Widia

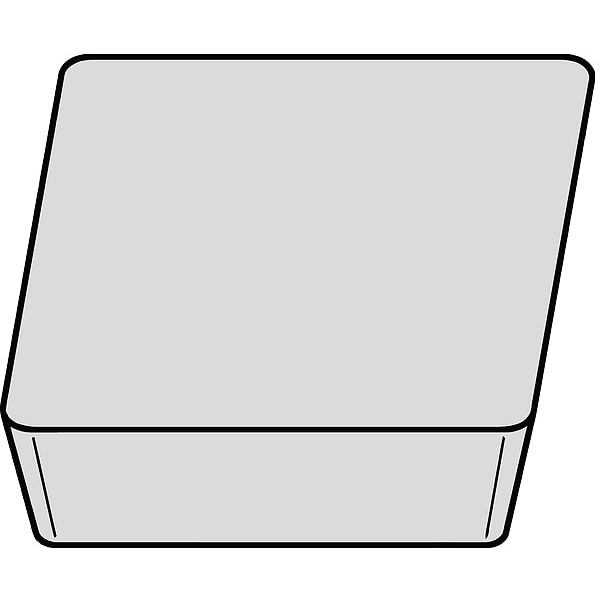

Grooving/Parting Insert, CPG, Carbide

product price: $37.45
/ea
Sold in multiples of 10 for $374.50
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Style Small Hole Boring Positive Inserts
  • Width 0.0300 in
  • Chip-Breaker No
  • Grade CG5
  • Cutting Direction Right Hand
See all product information

Product Information

Dimensions

Width 0.0300 in
Insert Size 2
Seat Size 2
Depth of Cut 0.0650 in
Max. Grooving Width 0.0300 in

Details

Item Parting and Grooving Insert
Style Small Hole Boring Positive Inserts
Chip-Breaker No
Grade CG5
Cutting Direction Right Hand
ISO Number CPG2032R
Lead Angle 15 Degrees
Insert Style CPG
No. of Edges 2
Application Grooving
Mounting Style Taper Screw
Manufacturer Grade CG5
Measurement System Fractional Inch
Primary Material Application Aluminum, Brass, Bronze, Copper, Magnesium, Nickel, Stainless Steel, Steel, Titanium
Inscribed Circle 1/4 in
Number of Cutting Edges 2
Secondary Material Application Cast Iron
Coating Process PVD
Clearance Angle 11 Degrees
Feed Type High
Finish - Machining TiN
Material - Machining Carbide
Included Angle 80 Degrees
Primary Material Application ISO Code M, N, P, S
Cutting Application Grooving
Secondary Material Application ISO Code K
ANSI Code CPG2032R
Side Cutting Edge Angle 5 Degrees
Thickness 0.0750 in

Description

Parting and Grooving Insert, Right Hand, Max. Grooving Width 0.0300 in, Side Cutting Edge Angle 5 Degrees , ANSI Code CPG2032R, Clearance Angle 11 Degrees , Coating Process PVD
