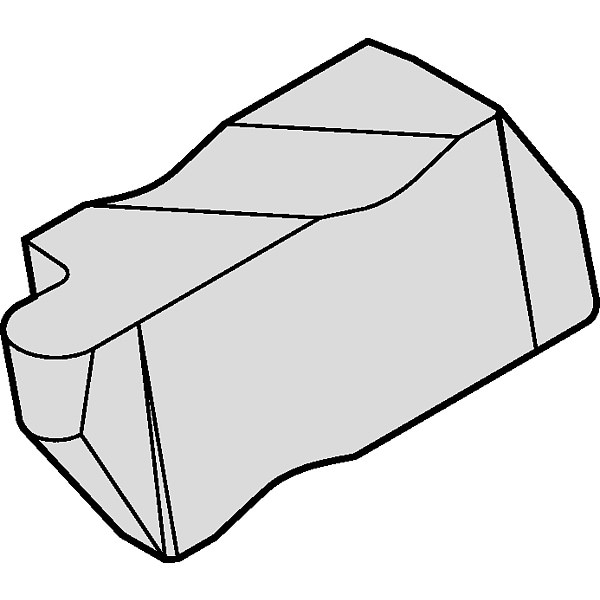

Widia Grooving/Parting Insert, NR, Carbide NR4M250L - main

Grooving/Parting Insert, NR, Carbide

  • Mfr # NR4M250L

  • Zoro # G3597579

product price: $34.19
/ea
Sold in multiples of 10 for $341.90

Key Features

Style
TopGroove(TM)
Insert Seat Size
4
Width
6.50mm
Chip-Breaker
No
Grade
TN6010
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
NR4M250L
Zoro #
G3597579
UPC #
4021169752919
Country of Origin
United States

Dimensions

Insert Seat Size
4
Width
6.50mm
Insert Size
4
Corner Radius
2.50mm
Seat Size
4
Depth of Cut
6.35mm
Thickness
11.51mm
Max. Grooving Width
5.00mm

Details

Item
Parting and Grooving Insert
Style
TopGroove(TM)
Chip-Breaker
No
Grade
TN6010
Cutting Direction
Left Hand
Coating
ALOX-SN
No. of Edges
2
Rake
Neutral
ISO Number
NR4M250L
Insert Style
NR
Insert Material
Carbide
Application
Grooving
Mounting Style
Notch
Lead Angle
11 Degrees
Secondary Material Application
Hardened Steel
Material - Machining
Carbide
Number of Cutting Edges
2
ANSI Code
NR4M250L
Hole Type
No Hole
Clearance Angle
11 Degrees
Primary Material Application
Aluminum, Brass, Bronze, Cast Iron, Copper, Magnesium, Nickel, Stainless Steel, Steel, Titanium
Coating Process
PVD
Secondary Material Application ISO Code
H
Measurement System
Metric
Cutting Application
Grooving
Manufacturer Grade
TN6010
Primary Material Application ISO Code
K, M, N, P, S

Description

Parting and Grooving Insert, Left Hand, Max. Grooving Width 5.00mm, ANSI Code NR4M250L, Clearance Angle 11 Degrees , Coating Process PVD
