  11. Indexable Boring Bar, A08RSCLCR2, 8 in L, High Speed Steel, 80 Degrees Diamond Insert Shape
Shop All Indexable Boring Bars
Widia

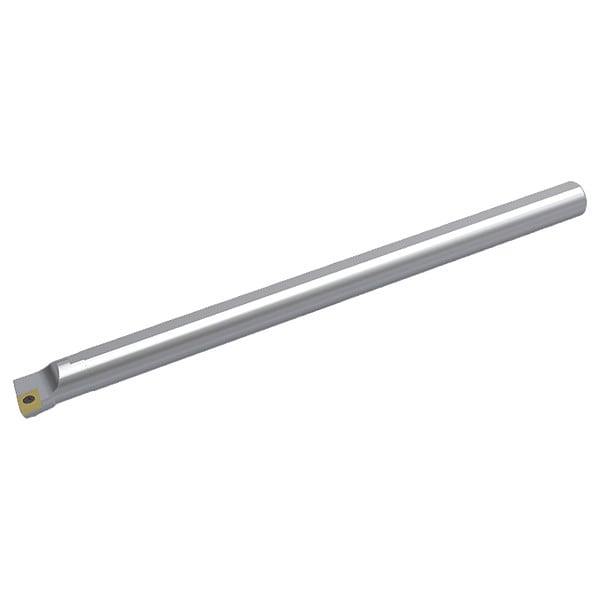

Indexable Boring Bar, A08RSCLCR2, 8 in L, High Speed Steel, 80 Degrees Diamond Insert Shape

product price: $112.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Shank Dia. 1/2 in
  • Overall Length 8 in
  • Cutting Direction Right Hand
  • Insert Shape 80 Degrees Diamond
  • Shank Material High Speed Steel
See all product information

Product Information

Dimensions

Shank Dia. 1/2 in
Overall Length 8 in
Insert Size 2151
Insert Cutting Edge Length 6.45mm
Min. Bore Dia. 0.6000 in
Cutting Height 0.0075 in

Details

Item Indexable Boring Bar
Cutting Direction Right Hand
Insert Shape 80 Degrees Diamond
Shank Material High Speed Steel
ANSI Code A08RSCLCR2
Lead Angle -5 Degrees
Rake -5 Degrees Radial, 0 Degrees Axial
Type Screw Clamping
Left/Right Hand Right Hand
ISO Number A08RSCLCR2
Head Material Steel
Number of Inserts 1
Toolholder Style A-SCLC
Number of Coolant Holes 1
Insert Style CC
Coolant Fed Coolant Through
Approach Angle 95 Degrees
Side Cutting Edge Angle -5 Degrees
Cutting Application Boring
Center to Cutting Tip 0.3120 in
Insert Holding Type Screw On
Measurement System Fractional Inch

Description

Indexable Boring Bar, A-SCLC, Insert Shape 80 Degrees Diamond, Overall Length 8 in, A08RSCLCR2, 95 Degrees , 0.3120 in, Coolant Through, Boring, Right Hand
