Indexable Face Mill, VSM490-15 Series, 1.5000" Max Cut Dia, High Speed Steel, 0.5910 in Depth of Cut

  • Mfr # 5710593
  • Zoro # G3782455
product price:
$
621.99
/ea
Free Shipping & Returns

Key Features

Series
VSM490-15
Cutting Dia.
1.5000"
Overall Length
1.5750 in
Number of Inserts Required
5
Depth of Cut
0.5910 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
5710593
Zoro #
G3782455
UPC #
4050841619691
Country of Origin
United States

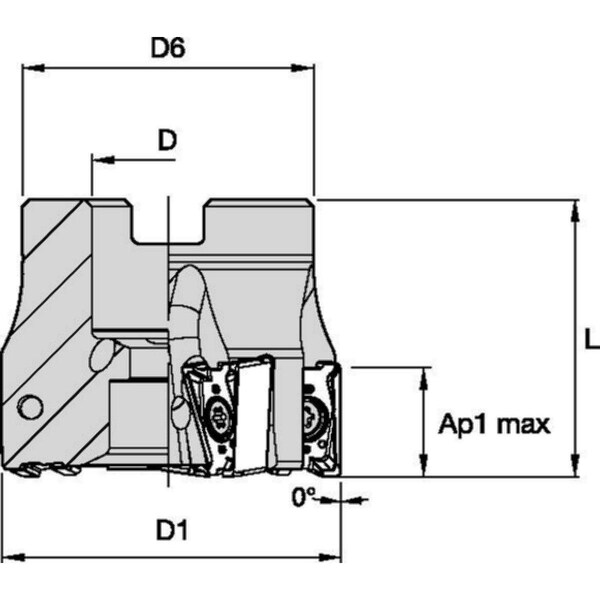

Dimensions

Cutting Dia.
1.5000"
Overall Length
1.5750 in
Depth of Cut
0.5910 in
Insert Size
15T608
Shank Dia.
0.5000 in
Max. Cutting Dia.
1 1/2 in
Arbor Dia.
1/2"
Hub Outside Dia.
1.4200"
Wire Rope Length
1.5750 in
Length
1.5750 in
Fits Chest Size
Effective Internal Coolant Feature, in Stepless in Solution, Precisely Reaching the Cutting Edge, Strong Concept to Run up to 15mm (0.590 in) Depth of Cut, Superior Wall and Surface Finish Capabilities, True 0 Degrees to Run Precise Applications in Multiple Axial Passes

Details

Item
Indexable Face Mill
Series
VSM490-15
Number of Inserts Required
5
Material - Machining
High Speed Steel
Shank Shape
Socket Head Cap Screw
Cutting Direction
Right Hand
Max. Speed
19,500 RPM
ISO Number
VSM490D150Z05S050XN15
Features
Effective Internal Coolant Feature, in Stepless in Solution, Precisely Reaching the Cutting Edge, Strong Concept to Run up to 15mm (0.590 in) Depth of Cut, Superior Wall and Surface Finish Capabilities, True 0 Degrees to Run Precise Applications in Multiple Axial Passes
ANSI Code
VSM490D150Z05S050XN15
Compatible Hardware
Anti-Seize Lubricant, Insert Screw M4x0.7 x 10 Ip15, Screw Lock Cutter Head, Torx Plus Drive Wrench DT15IP
Insert Shape
90 Degrees Rectangle Mill 4
Rake
-15.4 Degrees Radial, -8 Degrees Axial
Cutting Application
Face Milling, Pocketing, Side and Face Milling, Side/Shoulder Milling: Square End, Slotting: Square End
Coolant Fed
Coolant Through
Insert Holding Type
Screw
Number of Inserts
5
Insert Style
XNGU SRMM
Number of Flutes
5

Description

Indexable Face Mill, Max. Cutting Dia. 1 1/2 in, Shank Dia. 0.5000 in, Overall Length 1.5750 in, ANSI Code VSM490D150Z05S050XN15, Compatible Hardware Anti-Seize Lubricant, Insert Screw M4x0.7 x 10 Ip15, Screw Lock Cutter Head, Torx Plus Drive Wrench DT15IP, Coolant Fed Coolant Through
