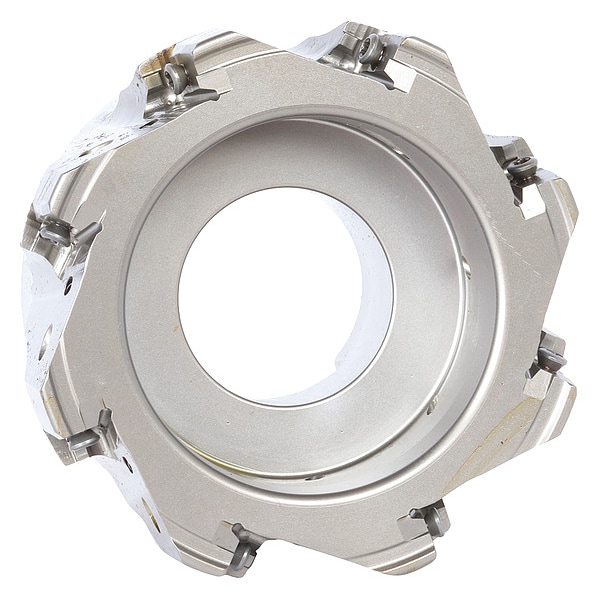

Widia Indexable Face Mill, VSM490-15 Series, 4" Max Cut Dia, High Speed Steel, 0.5910 in Depth of Cut 5873106 - main

Indexable Face Mill, VSM490-15 Series, 4" Max Cut Dia, High Speed Steel, 0.5910 in Depth of Cut

  • Mfr # 5873106

  • Zoro # G3803482

product price:  $1,077.99
/ea
Free Shipping & Returns

Key Features

Series
VSM490-15
Cutting Dia.
4"
Overall Length
2 in
Number of Inserts Required
8
Depth of Cut
0.5910 in
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
5873106
Zoro #
G3803482
UPC #
4050841729772
Country of Origin
Germany

Dimensions

Cutting Dia.
4"
Overall Length
2 in
Depth of Cut
0.5910 in
Insert Size
15T608
Shank Dia.
1.5000"
Max. Cutting Dia.
4 in
Arbor Dia.
1-1/2 in
Hub Outside Dia.
3.3800 in

Details

Item
Indexable Face Mill
Series
VSM490-15
Number of Inserts Required
8
Material - Machining
High Speed Steel
Shank Shape
Socket Head Cap Screw
Cutting Direction
Right Hand
Number of Inserts
8
Insert Style
XNGU SRMM
Compatible Hardware
Anti-Seize Lubricant, Coolant Screw Assembly, Insert Screw M4x0.7 x 10 Ip15, KLS-20 Shell Mill Lock Screw, Torx Plus Drive Wrench DT15IP
ISO Number
VSM490D400Z08S150XN15
Features
Effective Internal Coolant Feature, in Stepless in Solution, Precisely Reaching the Cutting Edge, Strong Concept to Run up to 15mm (0.590 in) Depth of Cut, Superior Wall and Surface Finish Capabilities, True 0 Degrees to Run Precise Applications in Multiple Axial Passes
Insert Holding Type
Screw
Rake
-13.632 Degrees Radial, -8 Degrees Axial
Coolant Fed
Coolant Through
Insert Shape
90 Degrees Rectangle Mill 4
Max. Speed
10,800 RPM
Cutting Application
Face Milling, Pocketing, Side and Face Milling, Side/Shoulder Milling: Square End, Slotting: Square End
ANSI Code
VSM490D400Z08S150XN15
Number of Flutes
8

Description

Indexable Face Mill, Max. Cutting Dia. 4 in, Arbor Dia. 1-1/2 in, Depth of Cut 0.5910 in, ANSI Code VSM490D400Z08S150XN15, Compatible Hardware Anti-Seize Lubricant, Coolant Screw Assembly, Insert Screw M4x0.7 x 10 Ip15, KLS-20 Shell Mill Lock Screw, Torx Plus Drive Wrench DT15IP, Coolant Fed Coolant Through, Cutting Application Face Milling, Pocketing, Side and Face Milling, Side/Shoulder Milling: Square End, Slotting: Square End
