  11. Indexable Insert Drill, 1-1/2", TCF
Widia Indexable Insert Drill, 1-1/2", TCF TCF2000R4SLR150G - main

Indexable Insert Drill, 1-1/2", TCF

  • Mfr # TCF2000R4SLR150G

  • Zoro # G3778614

product price: $780.99
/ea
Free Shipping & Returns

Key Features

Diameter
1-1/2"
Ratio
4xD
Overall Length
321.64mm
Shank Dia.
1-1/2 in
Cutting Direction
Right Hand
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
TCF2000R4SLR150G
Zoro #
G3778614
UPC #
4050841120074
Country of Origin
Bulgaria

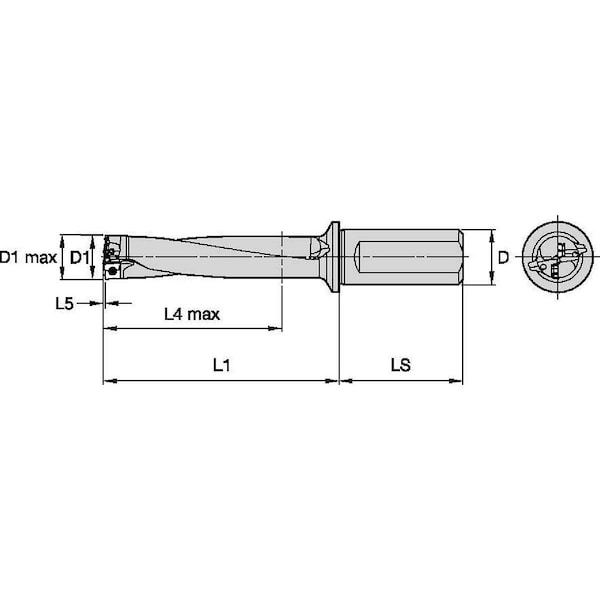

Dimensions

Diameter
1-1/2"
Overall Length
321.64mm
Shank Dia.
1-1/2 in
Shank Length
70.00mm
Depth x Dia. Ratio
4xD
Max. Drilling Depth
205.01mm
Min. Drill Dia.
50.80mm
Flute Length
242.60mm
Max. Drill Dia.
51.80mm

Details

Item
Indexable Insert Drill
Ratio
4xD
Cutting Direction
Right Hand
Mounting Style
Screw Clamp
Toolholder Style
TCF
Flute Type
Slow Spiral
Coolant Fed
Coolant Through
Number of Inserts
2
Drilling Application
45 Degrees Corner, Blind Hole, Chain, Convex, Cross Hole, Half Cylindrical, Inclined Entry, Inclined Exit, X-Offset
Spiral Direction
Right Hand
ANSI Code
TCF2000R4SLR150G
Flanged Shank
Yes
Central Insert Style
TCF
Shank Type - Machining
Round with Flat and Side Lock
ISO Number
TCF2000R4SLR150G
Number of Coolant Holes
2
Measurement System
Fractional Inch

Description

Indexable Insert Drill, 4xD, Max. Drilling Depth 205.01mm, TCF2000R4SLR150G, TCF, Coolant Through
