  11. Indexable Insert Drill, 1-1/2", TCF

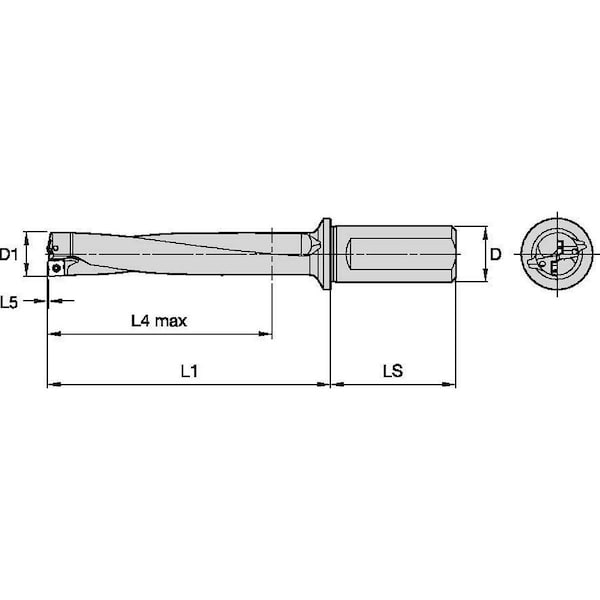

Widia Indexable Insert Drill, 1-1/2", TCF TCF2000R5SLR150G - main

Indexable Insert Drill, 1-1/2", TCF

  • Mfr # TCF2000R5SLR150G

  • Zoro # G3776919

product price: $934.99
/ea
Free Shipping & Returns

Key Features

Diameter
1-1/2"
Ratio
5xD
Shank Length
2.7559 in
Overall Length
14.6631 in
Shank Dia.
1-1/2 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
TCF2000R5SLR150G
Zoro #
G3776919
UPC #
4050841120616
Country of Origin
Bulgaria

Dimensions

Diameter
1-1/2"
Shank Length
2.7559 in
Overall Length
14.6631 in
Shank Dia.
1-1/2 in
Max. Drilling Depth
10.0710 in
Min. Drill Dia.
2 in
Flute Length
11.5530 in
Depth x Dia. Ratio
5xD

Details

Item
Indexable Insert Drill
Ratio
5xD
Cutting Direction
Right Hand
Mounting Style
Screw Clamp
Spiral Direction
Right Hand
Flanged Shank
Yes
Number of Inserts
2
Coolant Fed
Coolant Through
Central Insert Style
TCF
Drilling Application
45 Degrees Corner, Blind Hole, Chain, Convex, Cross Hole, Half Cylindrical, Inclined Entry, Inclined Exit
Shank Type - Machining
Round with Flat and Side Lock
Number of Coolant Holes
2
ANSI Code
TCF2000R5SLR150G
Toolholder Style
TCF
ISO Number
TCF2000R5SLR150G
Flute Type
Slow Spiral
Measurement System
Fractional Inch

Description

Indexable Insert Drill, 5xD, Max. Drilling Depth 10.0710 in, TCF2000R5SLR150G, TCF, Coolant Through
