  11. Indexable Insert Drill, 1-1/4", TCF

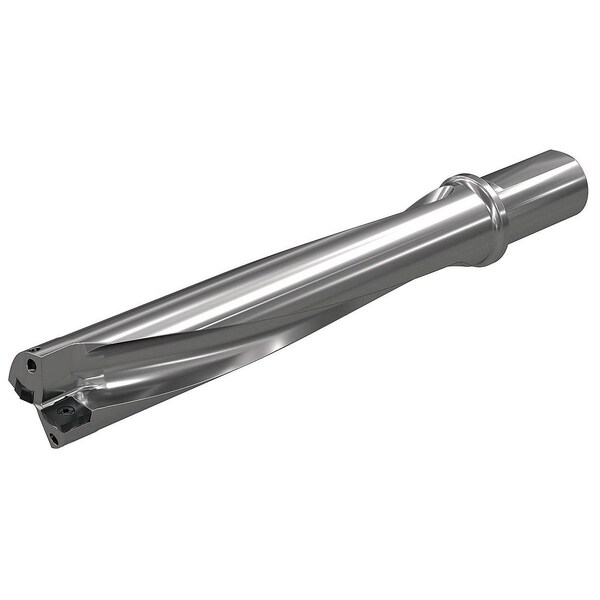

Widia Indexable Insert Drill, 1-1/4", TCF TCF1031R5SLR125D - main

Indexable Insert Drill, 1-1/4", TCF

  • Mfr # TCF1031R5SLR125D

  • Zoro # G3762532

product price: $695.99
/ea
Free Shipping & Returns

Key Features

Diameter
1-1/4"
Ratio
5xD
Cutting Direction
Right Hand
Overall Length
8.7823 in
Mounting Style
Screw Clamp
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
TCF1031R5SLR125D
Zoro #
G3762532
UPC #
4050839889235
Country of Origin
Bulgaria

Dimensions

Diameter
1-1/4"
Overall Length
8.7823 in
Shank Dia.
1-1/4 in
Shank Length
2.3622 in
Min. Drill Dia.
1-1/32 in
Depth x Dia. Ratio
5xD
Flute Length
6.2230 in
Max. Drilling Depth
5.1920 in

Details

Item
Indexable Insert Drill
Ratio
5xD
Cutting Direction
Right Hand
Mounting Style
Screw Clamp
Flanged Shank
Yes
Shank Type - Machining
Round with Flat and Side Lock
Coolant Fed
Coolant Through
ANSI Code
TCF1031R5SLR125D
Flute Type
Slow Spiral
Toolholder Style
TCF
ISO Number
TCF1031R5SLR125D
Central Insert Style
TCF
Drilling Application
45 Degrees Corner, Blind Hole, Chain, Convex, Cross Hole, Half Cylindrical, Inclined Entry, Inclined Exit
Number of Coolant Holes
2
Number of Inserts
2
Spiral Direction
Right Hand
Measurement System
Fractional Inch

Description

Indexable Insert Drill, 5xD, Max. Drilling Depth 5.1920 in, TCF1031R5SLR125D, TCF, Coolant Through
