  11. Indexable Insert Drill, 25.00mm, TCF, Flute Length: 84.70mm

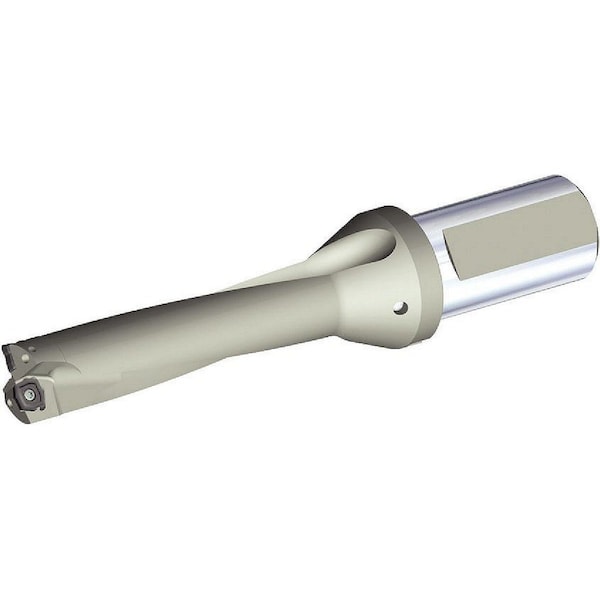

Widia Indexable Insert Drill, 25.00mm, TCF, Flute Length: 84.70mm TCF165R4SLR25MB - main

Indexable Insert Drill, 25.00mm, TCF, Flute Length: 84.70mm

  • Mfr # TCF165R4SLR25MB

  • Zoro # G3777485

product price: $595.99
/ea
Free Shipping & Returns

Key Features

Diameter
25.00mm
Ratio
4xD
Mounting Style
Screw Clamp
Cutting Direction
Right Hand
Shank Length
56.00mm
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
TCF165R4SLR25MB
Zoro #
G3777485
UPC #
4050841099561
Country of Origin
Bulgaria

Dimensions

Diameter
25.00mm
Shank Length
56.00mm
Overall Length
145.60mm
Shank Dia.
25.00mm
Min. Drill Dia.
16.50mm
Depth x Dia. Ratio
4xD
Max. Drilling Depth
66.60mm
Flute Length
84.70mm
Max. Drill Dia.
17.00mm

Details

Item
Indexable Insert Drill
Ratio
4xD
Mounting Style
Screw Clamp
Cutting Direction
Right Hand
Toolholder Style
TCF
Standards
ISO 9766
Spiral Direction
Right Hand
Number of Coolant Holes
2
Flute Type
Slow Spiral
Coolant Fed
Coolant Through
ANSI Code
TCF165R4SLR25MB
ISO Number
TCF165R4SLR25MB
Central Insert Style
TCF
Drilling Application
45 Degrees Corner, Blind Hole, Chain, Convex, Cross Hole, Half Cylindrical, Inclined Entry, Inclined Exit, X-Offset
Flanged Shank
Yes
Shank Type - Machining
Round with Flat and Side Lock
Number of Inserts
2
Measurement System
Metric

Description

Indexable Insert Drill, 4xD, Max. Drilling Depth 66.60mm, TCF165R4SLR25MB, TCF, Coolant Through
