  11. Indexable Insert Drill, 40.00mm, TCF
Widia Indexable Insert Drill, 40.00mm, TCF TCF510R2SLR40MG - main

Indexable Insert Drill, 40.00mm, TCF

  • Mfr # TCF510R2SLR40MG

  • Zoro # G3749950

product price: $689.99
/ea
Free Shipping & Returns

Key Features

Diameter
40.00mm
Ratio
2xD
Mounting Style
Screw Clamp
Shank Dia.
40.00mm
Cutting Direction
Right Hand
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
TCF510R2SLR40MG
Zoro #
G3749950
UPC #
4050841114943
Country of Origin
Bulgaria

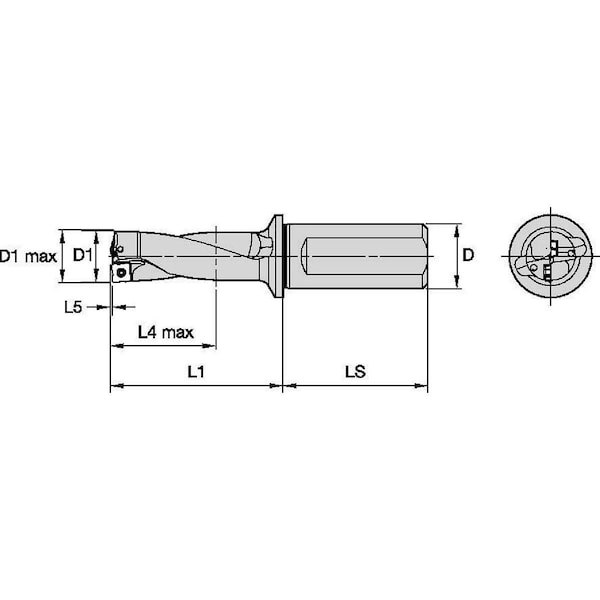

Dimensions

Diameter
40.00mm
Shank Dia.
40.00mm
Overall Length
220.81mm
Shank Length
70.00mm
Min. Drill Dia.
51.00mm
Depth x Dia. Ratio
2xD
Flute Length
144.60mm
Max. Drilling Depth
103.81mm
Max. Drill Dia.
52.00mm

Details

Item
Indexable Insert Drill
Ratio
2xD
Mounting Style
Screw Clamp
Cutting Direction
Right Hand
Flute Type
Slow Spiral
Flanged Shank
Yes
Number of Coolant Holes
2
Spiral Direction
Right Hand
Shank Type - Machining
Round with Flat and Side Lock
Number of Inserts
2
ISO Number
TCF510R2SLR40MG
Drilling Application
45 Degrees Corner, Blind Hole, Chain, Convex, Cross Hole, Half Cylindrical, Inclined Entry, Inclined Exit, X-Offset
Central Insert Style
TCF
ANSI Code
TCF510R2SLR40MG
Toolholder Style
TCF
Coolant Fed
Coolant Through
Standards
ISO 9766
Measurement System
Metric

Description

Indexable Insert Drill, 2xD, Max. Drilling Depth 103.81mm, TCF510R2SLR40MG, TCF, Coolant Through
