  11. Indexable Profiling End Mill, M100 Series, High Speed Steel, 0.1575 in Depth of Cut
Shop All Indexable End Mills
Widia

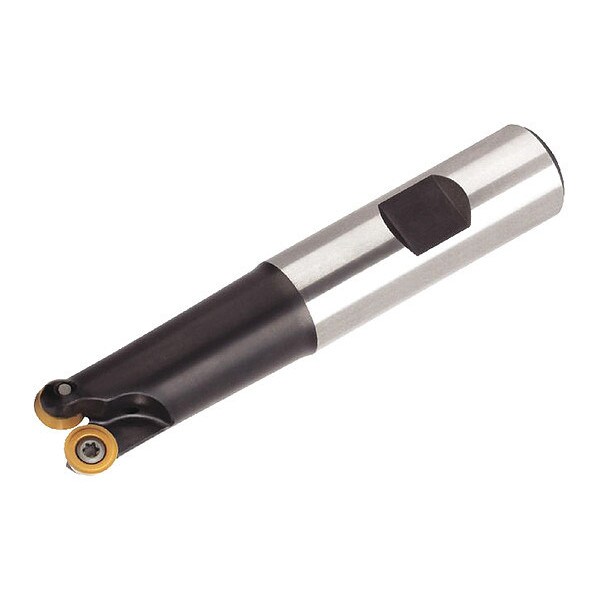

Indexable Profiling End Mill, M100 Series, High Speed Steel, 0.1575 in Depth of Cut

product price: $290.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Series M100
  • Overall Length 4-1/2 in
  • Depth of Cut 0.1575 in
  • Material - Machining High Speed Steel
  • Shank Dia. 3/4 in
See all product information

Product Information

Dimensions

Overall Length 4-1/2 in
Depth of Cut 0.1575 in
Shank Dia. 3/4 in
Insert Size RD..0802MOT
Head Dia. 3/4 in
Max. Cutting Dia. 3/4 in
Head Projection Length 2-1/2 in
Shank Length 2.0300 in

Details

Item Indexable Profiling End Mill
Series M100
Material - Machining High Speed Steel
Cutting Direction Right Hand
Insert Shape Round
ANSI Code M100D075Z02W075RD08L453
Number of Inserts 2
Shank Type - Machining Weldon Flat
Max. Speed 26,000 RPM
Insert Holding Type Screw
Compatible Hardware Insert Screw M3x0.5 x 5.5 T8, Torx Driver
Cutting Application 3D Profiling, Face Milling, Helical Milling, Pocketing, Ramping: Blank, Side/Shoulder Milling: Ball Nose, Slotting: Square End
Side Cutting Edge Angle 15 Degrees
Insert Inscribed Circle 8.00mm
Insert Style RD
Features Anti-Rotation Feature for Top Security
Coolant Fed Coolant Through
ISO Number M100D075Z02W075RD08L453
Number of Coolant Holes 1

Description

Indexable Profiling End Mill, Max. Cutting Dia. 3/4 in, Depth of Cut 0.1575 in, Shank Dia. 3/4 in, Overall Length 4-1/2 in, ANSI Code M100D075Z02W075RD08L453, Compatible Hardware Insert Screw M3x0.5 x 5.5 T8, Torx Driver, Coolant Fed Coolant Through, Cutting Application 3D Profiling, Face Milling, Helical Milling, Pocketing, Ramping: Blank, Side/Shoulder Milling: Ball Nose, Slotting: Square End
