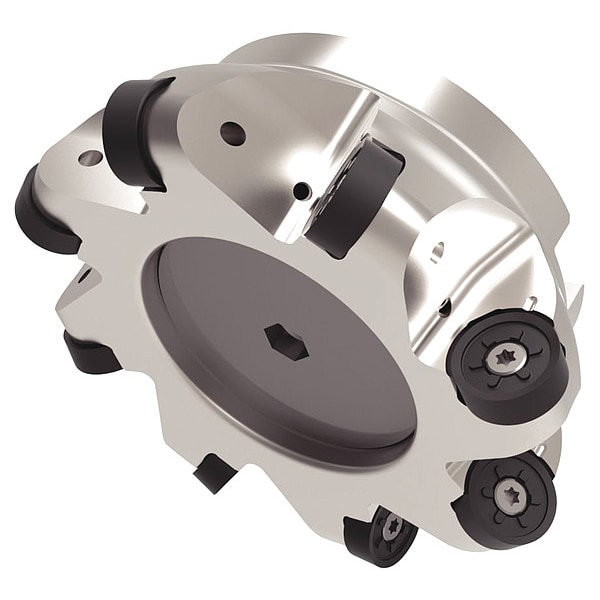

Indexable Profiling End Mill, M200 Series, High Speed Steel, 0.3700 in Depth of Cut
Mfr # M200D400Z06S125RN64
Zoro # G3788913
product price:Â $1,174.99
/ea
Free Shipping & Returns
Key Features
Series
M200
Overall Length
2 in
Depth of Cut
0.3700 in
Material - Machining
High Speed Steel
Insert Size
64
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowUnlock tax-exempt savings
Add Tax ExemptionSpecifications
Product Information
MFR #
M200D400Z06S125RN64
Zoro #
G3788913
UPC #
4056544154408
Country of Origin
United States
Dimensions
Overall Length
2 in
Depth of Cut
0.3700 in
Insert Size
64
Max. Cutting Dia.
4 in
Arbor Dia.
1-1/4"
Hub Outside Dia.
2-7/8"
Details
Item
Indexable Profiling End Mill
Series
M200
Material - Machining
High Speed Steel
Cutting Direction
Right Hand
Insert Shape
Round
Rake
-11 Degrees Radial, -7 Degrees Axial
Cutting Application
3D Profiling, Face Milling, Helical Milling, Pocketing, Side and Face Milling, Side/Shoulder Milling: Ball Nose, Slotting: Square End
Max. Speed
11,600 RPM
Coolant Fed
Coolant Through
Compatible Hardware
5/8"-18 LHCS with Cool Grooves x 1 in, Insert Screw M5x0.8 x 14 T20, Screw 5/8"-18 x 1-1/4 in, T Handle Torx Wrench
Insert Holding Type
Screw
Number of Inserts
6
Features
12 Cutting Edges, Anti-Rotation Feature for Better Stability and Higher Feed Rates, Double-Sided, Excellent for Heavy Roughing and Semi-Finishing of all Materials, Suitable for High-Feed Face Milling Operations
Insert Style
RN J
ISO Number
M200D400Z06S125RN64
ANSI Code
M200D400Z06S125RN64
Description
Indexable Profiling End Mill, Max. Cutting Dia. 4 in, Depth of Cut 0.3700 in, Overall Length 2 in, ANSI Code M200D400Z06S125RN64, Compatible Hardware 5/8 In.-18 LHCS with Cool Grooves x 1 in, Insert Screw M5x0.8 x 14 T20, Screw 5/8 In.-18 x 1-1/4 in, T Handle Torx Wrench, Coolant Fed Coolant Through, Cutting Application 3D Profiling, Face Milling, Helical Milling, Pocketing, Side and Face Milling, Side/Shoulder Milling: Ball Nose, Slotting: Square End
