Indexable Profiling End Mill, VSM490-10 Series, High Speed Steel, 10.00mm Depth of Cut
Mfr # VSM490D125Z10S40XN10
Zoro # G3788609
product price:Â $1,330.99
/ea
Free Shipping & Returns
Key Features
Series
VSM490-10
Overall Length
63.00mm
Depth of Cut
10.00mm
Material - Machining
High Speed Steel
Cutting Direction
Right Hand
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowUnlock tax-exempt savings
Add Tax ExemptionSpecifications
Product Information
MFR #
VSM490D125Z10S40XN10
Zoro #
G3788609
UPC #
4059782476578
Country of Origin
United States

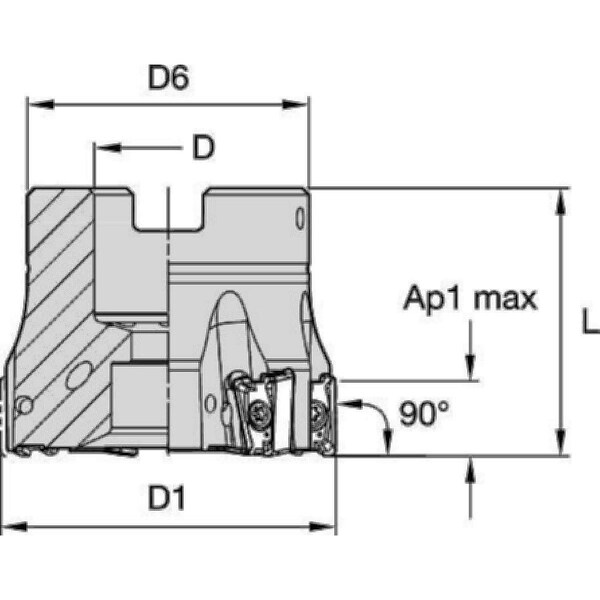

Dimensions
Overall Length
63.00mm
Depth of Cut
10.00mm
Insert Size
100408
Arbor Dia.
40.00mm
Hub Outside Dia.
90.00mm
Details
Item
Indexable Profiling End Mill
Series
VSM490-10
Material - Machining
High Speed Steel
Cutting Direction
Right Hand
Insert Shape
90 Degrees Rectangle Mill 4
Rake
-12.6 Degrees Radial, -8 Degrees Axial
Insert Style
XNGU SRMM
Number of Inserts
10
Cutting Application
Face Milling, Side and Face Milling, Side/Shoulder Milling: Square End, Slotting: Square End
Insert Holding Type
Screw
Features
Best-in-Class Wall Finish in Axial Stepping-Down Jobs, Coarse, Lower Cutting Forces and Real Soft Cutting Action, Medium and Fine Pitch Cutter Density Available, Perfect Fit for Taper 40 Spindles and Driven Units, True 90 Degrees Roughing Tool with Embedded Finishing Capability in One Tool
Coolant Fed
Coolant Through
ANSI Code
VSM490D125Z10S40XN10
Max. Speed
13,500 RPM
ISO Number
VSM490D125Z10S40XN10
Compatible Hardware
Anti-Seize Lubricant, Coolant Screw Assembly - M20, Hardware Chave Torx DT-9IP, Insert Screw M3x0.5 x 7.2 IP9
Side Cutting Edge Angle
90 Degrees
Description
Indexable Profiling End Mill, Depth of Cut 10.00mm, Overall Length 63.00mm, ANSI Code VSM490D125Z10S40XN10, Compatible Hardware Anti-Seize Lubricant, Coolant Screw Assembly - M20, Hardware Chave Torx DT-9IP, Insert Screw M3x0.5 x 7.2 IP9, Coolant Fed Coolant Through, Cutting Application Face Milling, Side and Face Milling, Side/Shoulder Milling: Square End, Slotting: Square End
