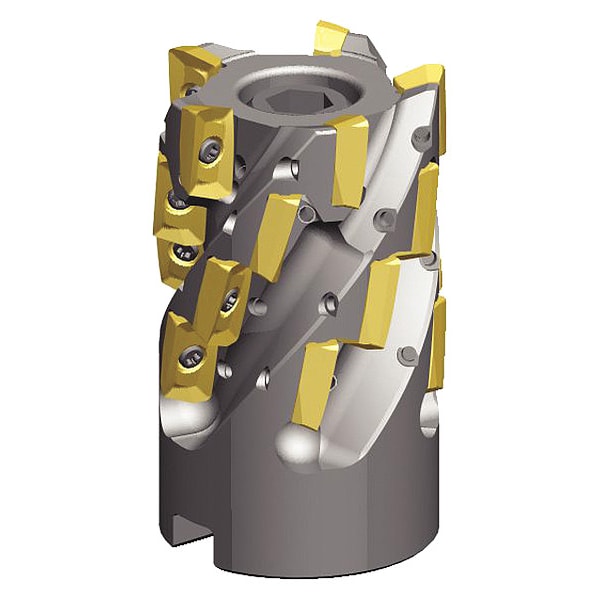

Indexable Profiling End Mill, VSM11 Series, High Speed Steel, 2.0320 in Depth of Cut
Mfr # VHM11D200Z06S300XD11
Zoro # G3794032
product price:Â $1,878.99
/ea
Free Shipping & Returns
Key Features
Series
VSM11
Overall Length
3 in
Depth of Cut
2.0320 in
Material - Machining
High Speed Steel
Cutting Direction
Right Hand
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowUnlock tax-exempt savings
Add Tax ExemptionSpecifications
Product Information
MFR #
VHM11D200Z06S300XD11
Zoro #
G3794032
UPC #
4056544351289
Country of Origin
United States
Dimensions
Overall Length
3 in
Depth of Cut
2.0320 in
Shank Dia.
1 in
Insert Size
110408PD
Max. Cutting Dia.
2 in
Insert Cutting Edge Length
13.44mm
Head Dia.
2 in
Head Projection Length
3 in
Details
Item
Indexable Profiling End Mill
Series
VSM11
Material - Machining
High Speed Steel
Cutting Direction
Right Hand
Insert Shape
75 Degrees Parallelogram
Rake
-6.5 Degrees Radial, 3.5 Degrees Axial
Side Cutting Edge Angle
15 Degrees
Insert Holding Type
Screw
Insert Style
XDCT-ALP
Compatible Hardware
Coolant Nozzle - 1.00mm Hole, Insert Screw M2.5x0.45 x 5.9 T8, Insert Screw M2.5x0.45 x 7.7 T8, Torx Wrench TX8
ANSI Code
VHM11D200Z06S300XD11
Max. Speed
19,700 RPM
Cutting Application
Side/Shoulder Milling: Square End
ISO Number
VHM11D200Z06S300XD11
Coolant Fed
Coolant Through
Description
Indexable Profiling End Mill, Max. Cutting Dia. 2 in, Depth of Cut 2.0320 in, Shank Dia. 1 in, Overall Length 3 in, ANSI Code VHM11D200Z06S300XD11, Compatible Hardware Coolant Nozzle - 1.00mm Hole, Insert Screw M2.5x0.45 x 5.9 T8, Insert Screw M2.5x0.45 x 7.7 T8, Torx Wrench TX8, Coolant Fed Coolant Through, Cutting Application Side/Shoulder Milling: Square End
