Widia

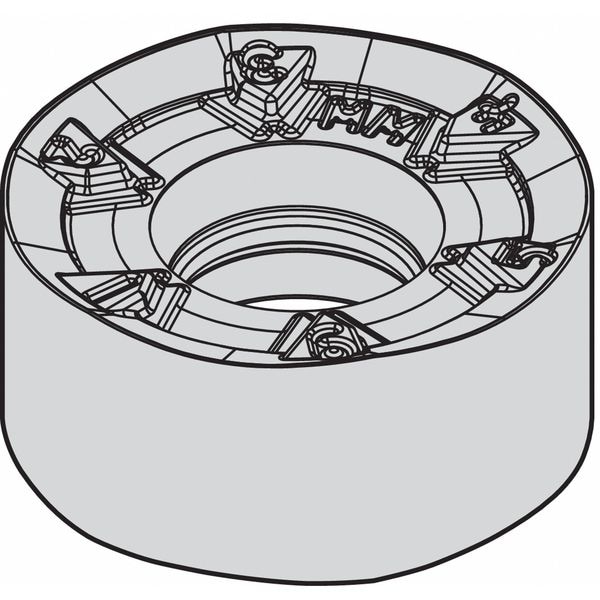

Milling Insert, Round

product price: $18.85
/ea
Sold in multiples of 5 for $94.25
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Insert Shape Round
  • ISO Number RNGJ1204M0SMM
  • Hardened (H) Compatibility Yes
  • Chip-Breaker Yes
  • Insert Style RNGJ
See all product information

Product Information

Dimensions

Mounting Hole Dia. 5.00mm
Nose Radius 0.236"
Insert Size 1204M0
Cutting Edge Length 12.00mm
Through Hole Inside Dia. 5.00mm

Details

Insert Shape Round
ISO Number RNGJ1204M0SMM
Hardened (H) Compatibility Yes
Chip-Breaker Yes
Insert Style RNGJ
Non Ferrous (N) Compatibility No
Steel (P) Compatibility Yes
Insert Thickness 0.1870"
Item Round Milling Insert
Super Alloy (S) Compatibility Yes
For Use With M200 Series Copy Mills
Insert Application Medium
Insert Material Carbide
Workpiece Compatibility Cast Iron (K), Hardened (H), Stainless (M), Steel (P), Super Alloy (S)
Inscribed Circle 0.4724 in
Cast Iron (K) Compatibility Yes
No. of Edges 12
Cutting Direction Neutral
Mounting Style Screw Clamp
Rake Positive
Coating Tin
Grade WU35PM
Stainless (M) Compatibility Yes
ANSI Number RNGJ1204M0SMM
Series M200
Chip-Breaker Style Double Sided
Cutting Application Milling
Primary Material Application Nickel, Stainless Steel, Steel, Titanium
Chip-Breaker Code MM
Insert Holding Type Screw Clamp
Shape Round
Thickness 0.1870 in
Primary Material Application ISO Code M, P, S
Material - Machining Carbide
Finish - Machining TiN
Cutting Edge Honed and T-Land
ANSI Code RNGJ1204M0SMM
Clearance Angle 0 Degrees
For Toolholder M200D150Z04S050RN12, M200D200Z04S075RN12, M200D200Z05S075RN12, M200D250Z07S075RN12, M200D300Z08S100RN12, M200D400Z09S150RN12
Manufacturer Grade WU35PM
Hole Type 70 Degrees to 90 Degrees Double Countersink Hole
Coating Process PVD
Measurement System Metric
Number of Cutting Edges 2

Description

Round Milling Insert, Inscribed Circle 0.4724 in, Rake Positive
