Widia

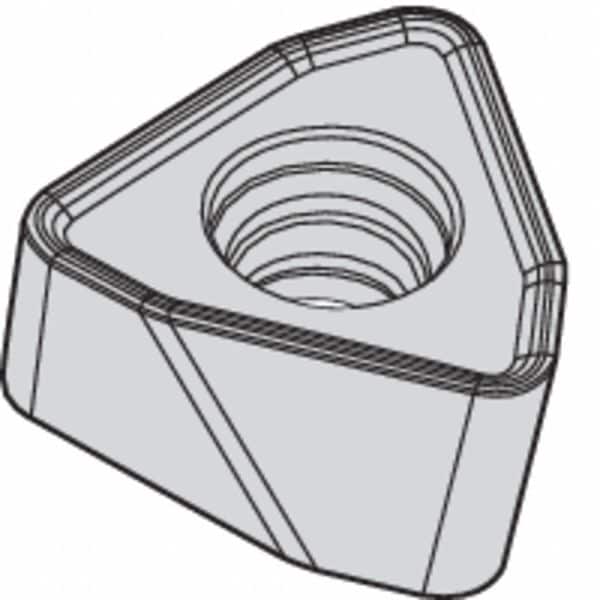

Milling Insert, Trigon

product price: $17.89
/ea
Sold in multiples of 5 for $89.45
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Coating ALOX-SN
  • Mounting Hole Dia. 3.56mm
  • Chip-Breaker Yes
  • Mounting Style Screw Clamp
  • ANSI Number WOEJ080412SRMH
See all product information

Product Information

Dimensions

Mounting Hole Dia. 3.56mm
Nose Radius 0.048"
Insert Size 080412
Cutting Edge Length 6.30mm
Through Hole Inside Dia. 3.56mm
Corner Radius 1.22mm

Details

Coating ALOX-SN
Chip-Breaker Yes
Mounting Style Screw Clamp
ANSI Number WOEJ080412SRMH
Lead Angle 12 Degrees
Insert Material Carbide
For Use With M370 Series Copy Mills
Insert Shape Trigon
Cast Iron (K) Compatibility Yes
Super Alloy (S) Compatibility No
Inscribed Circle 0.3069 in
Workpiece Compatibility Cast Iron (K), Steel (P)
Insert Style WOEJ
Stainless (M) Compatibility No
Rake Positive
ISO Number WOEJ080412SRMH
Non Ferrous (N) Compatibility No
No. of Edges 6
Insert Application Roughing
Hardened (H) Compatibility No
Item Trigon Milling Insert
Cutting Direction Right Hand
Steel (P) Compatibility Yes
Insert Thickness 0.1870"
Grade TN6525
Series M370
Primary Material Application Steel
For Toolholder M370D150Z04S050WO08, M370D200Z05S075WO08, M370D200Z07S075WO08, M370D250Z07S075WO08, M370D300Z08S100WO08
Number of Cutting Edges 6
Material - Machining Carbide
Clearance Angle 0 Degrees
Measurement System Metric
Shape Trigon
Finish - Machining TiAlN
ANSI Code WOEJ080412SRMH
Chip-Breaker Code MH
Chip-Breaker Style Double Sided
Secondary Material Application Cast Iron, Stainless Steel
Coating Process PVD
Included Angle 80 Degrees
Secondary Material Application ISO Code K, M
Manufacturer Grade TN6525
Primary Material Application ISO Code P
Insert Holding Type Screw Clamp
Thickness 0.1870 in
Features MH Geometry is the First Choice for High-Strength Steel and Cast Iron
Cutting Application Light Finishing
Hole Type 70 Degrees to 90 Degrees Double Countersink Hole

Description

Trigon Milling Insert, Inscribed Circle 0.3069 in, Rake Positive
