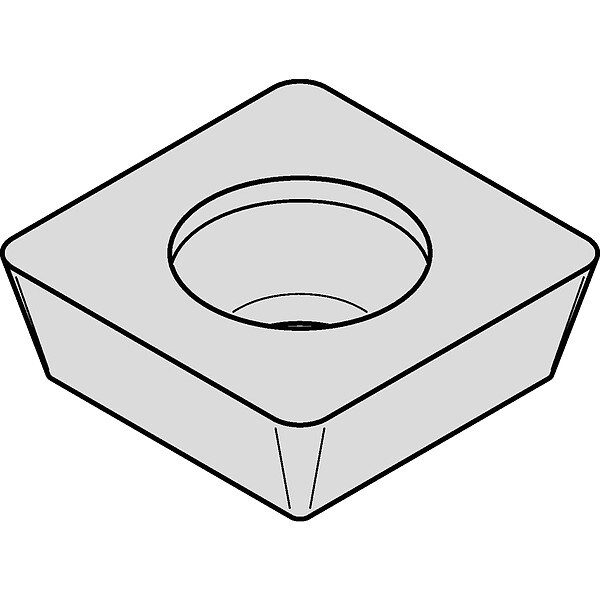

Square Milling Insert
Mfr # SDNT322T WP35CM
Zoro # G410369459
product price: $14.69
/eaSold in multiples of 5 for $73.45
Key Features
Lead Angle
45 Degrees
For Use With
M25 Series Chamfer Mills
Insert Size
322
Insert Style
SDNT
ISO Number
SDNT090308
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
SDNT322T WP35CM
Zoro #
G410369459
UPC #
4064182728714
Country of Origin
Germany
Dimensions
Insert Size
322
Thickness
0.1252 in
Cutting Edge Length
0.3750 in
Details
Lead Angle
45 Degrees
Item
Square Milling Insert
For Use With
M25 Series Chamfer Mills
Insert Style
SDNT
ISO Number
SDNT090308
Inscribed Circle
0.375 in
Clearance Angle
15 Degrees
Features
Large Chip Gash to Ef¿ciently Evacuate Chips from Heavy Duty Applications
Number of Cutting Edges
4
Cutting Application
Counter-Sinking/Stroke Chamfering, Eased Chamfer Side/Shoulder Milling
Secondary Material Application
Cast Iron, High-Temperature Alloy
Coating Process
CVD
Finish - Machining
TiN+TiCN+Al2O3
Primary Material Application ISO Code
M, P
Shape
Square
ANSI Code
SDNT322T
Measurement System
Decimal Inch
Manufacturer Grade
WP35CM
Secondary Material Application ISO Code
K, S
Primary Material Application
Stainless Steel, Steel
Material - Machining
Carbide
Description
Square Milling Insert, Inscribed Circle 0.375 in
