  11. Triangle Turning Insert, Triangle, 3/8 in, TPG3, 0.0156 in, Ceramic

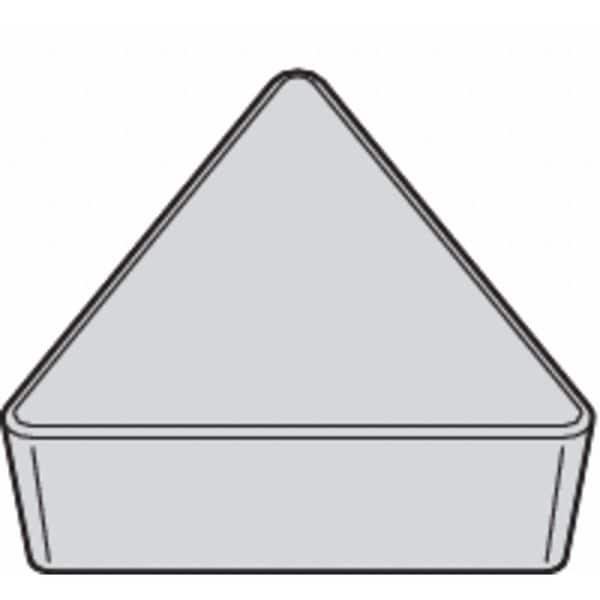

Widia Triangle Turning Insert, Triangle, 3/8 in, TPG3, 0.0156 in, Ceramic TPG321T0420 CW2015 - main

Triangle Turning Insert, Triangle, 3/8 in, TPG3, 0.0156 in, Ceramic

  • Mfr # TPG321T0420 CW2015

  • Zoro # G2909352

product price: $17.19
/ea
Sold in multiples of 5 for $85.95

Key Features

Insert Shape
Triangle
Insert Style
TPG3
Inscribed Circle
3/8 in
Insert Size
321
Chip-Breaker
No
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
TPG321T0420 CW2015
Zoro #
G2909352
UPC #
-
Country of Origin
Germany

Dimensions

Insert Size
321
Corner Radius
0.0156 in
Insert Thickness
0.1250"
Nose Radius
0.016"
Cutting Edge Length
16.5 mm
Thickness
0.125 in

Details

Item
Triangle Turning Insert
Insert Shape
Triangle
Insert Style
TPG3
Inscribed Circle
3/8 in
Chip-Breaker
No
Grade
CW2015
Insert Material
Ceramic
Insert Application
Medium
Rake
Negative
ISO Number
TPGN160304T01020
Mounting Style
Clamp
Cast Iron (K) Compatibility
Yes
Cutting Direction
Neutral
Hardened (H) Compatibility
No
Steel (P) Compatibility
No
Super Alloy (S) Compatibility
No
Workpiece Compatibility
Cast Iron (K)
For Use With
Toolholders, Boring Bars
Non Ferrous (N) Compatibility
No
Coating
Uncoated
ANSI Number
TPG321T0420
Stainless (M) Compatibility
No
No. of Edges
3
Relief Angle
11 Degrees
ANSI Code
TPG321T0420
Included Angle
60 Degrees
Number of Cutting Edges
3
Manufacturer Grade
CW2015
Material Grade - Machining
Alumina
Insert Holding Type
No Screw Hole
Primary Material Application
Cast Iron, Hardened Steel
Cutting Application
Outside and Inside Diameter Turning
Material - Machining
Ceramic
Measurement System
Fractional Inch
Finish - Machining
Bright (Uncoated)
Clearance Angle
11 Degrees
Primary Material Application ISO Code
H, K
Shape
Triangle
Cutting Edge
Chamfered
Material
Ceramic

Description

Triangle Turning Insert, Inscribed Circle 3/8 in, Bright (Uncoated)
