  11. Triangle Turning Insert, Triangle, 3/8 in, TPGT, 0.0156 in, Carbide

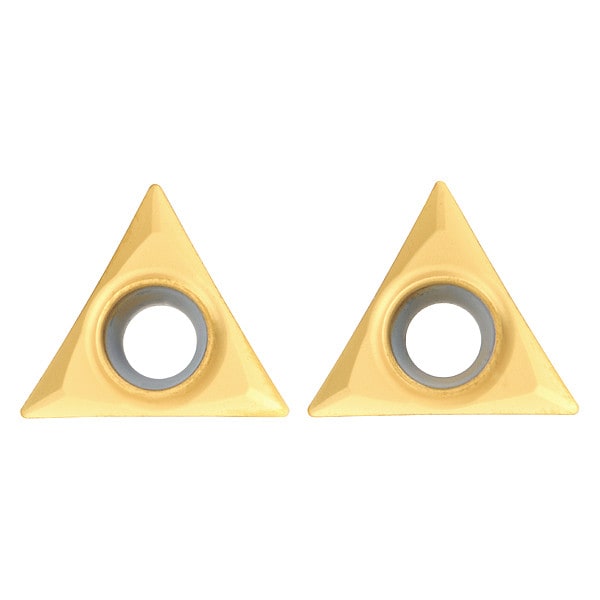

Widia Triangle Turning Insert, Triangle, 3/8 in, TPGT, 0.0156 in, Carbide TPGT3251HP CG5 - main

Triangle Turning Insert, Triangle, 3/8 in, TPGT, 0.0156 in, Carbide

  • Mfr # TPGT3251HP CG5

  • Zoro # G3879030

product price: $22.99
/ea
Sold in multiples of 10 for $229.90

Key Features

Insert Shape
Triangle
Insert Style
TPGT
Inscribed Circle
3/8 in
Insert Size
0.3750"
Chip-Breaker
Yes
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
TPGT3251HP CG5
Zoro #
G3879030
UPC #
4021169387999
Country of Origin
United States

Dimensions

Insert Size
0.3750"
Corner Radius
0.0156 in
Insert Thickness
0.1563"
Through Hole Inside Dia.
0.173 in
Thickness
0.1562 in
Cutting Edge Length
16.5 mm

Details

Item
Triangle Turning Insert
Insert Shape
Triangle
Insert Style
TPGT
Inscribed Circle
3/8 in
Chip-Breaker
Yes
Grade
CG5
Insert Material
Carbide
Rake
Positive
ISO Number
TPGT16T304HP
Coating
TiN
Cutting Direction
Neutral
Measurement System
Fractional Inch
Primary Material Application ISO Code
M, N, P, S
Clearance Angle
11 Degrees
Coating Process
PVD
Chip-Breaker Style
On One Side
Chip-Breaker Code
HP
Secondary Material Application
Cast Iron
Insert Holding Type
40 Degrees to 60 Degrees Countersink Hole
ANSI Code
TPGT3251HP
Primary Material Application
Aluminum, Brass, Bronze, Copper, Magnesium, Nickel, Stainless Steel, Steel, Titanium
Finish - Machining
TiN
Secondary Material Application ISO Code
K
Included Angle
60 Degrees
Shape
Triangle
Manufacturer Grade
CG5
Material - Machining
Carbide
Number of Cutting Edges
3
Cutting Application
Outside and Inside Diameter Turning
Material
Carbide

Description

Triangle Turning Insert, Chip-Breaker Code HP, Inscribed Circle 3/8 in, TiN
