  11. Turning Insert, Trigon, 4, WNMG, 2, Carbide

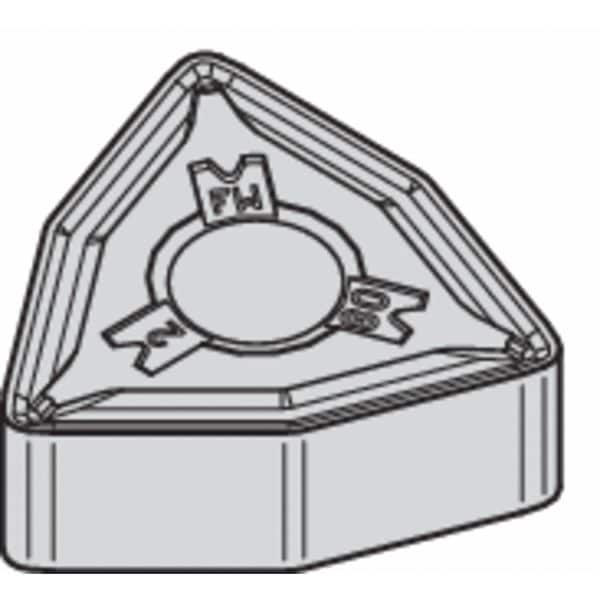

Widia Turning Insert, Trigon, 4, WNMG, 2, Carbide WNMG432FW WM25CT - main

Turning Insert, Trigon, 4, WNMG, 2, Carbide

  • Mfr # WNMG432FW WM25CT

  • Zoro # G2816191

product price: $8.29
/ea
Sold in multiples of 10 for $82.90

Key Features

Insert Shape
Trigon
Insert Style
WNMG
Inscribed Circle
4
Insert Size
432
Chip-Breaker
Yes
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
WNMG432FW WM25CT
Zoro #
G2816191
UPC #
-
Country of Origin
India

Dimensions

Insert Size
432
Corner Radius
2
Nose Radius
0.031"
Insert Thickness
0.1875"
Mounting Hole Dia.
0.203"
Cutting Edge Length
8.69mm
Thickness
3
Through Hole Inside Dia.
0.2030 in

Details

Item
Turning Insert
Insert Shape
Trigon
Insert Style
WNMG
Inscribed Circle
4
Chip-Breaker
Yes
Grade
WM25CT
Insert Material
Carbide
Insert Application
Finishing
Rake
Negative
ISO Number
WNMG080408FW
Hardened (H) Compatibility
No
Super Alloy (S) Compatibility
Yes
Mounting Style
Clamp
Relief Angle
0 Degrees
Steel (P) Compatibility
Yes
Workpiece Compatibility
Stainless (M), Steel (P), Super Alloy (S)
ANSI Number
WNMG432FW
No. of Edges
6
Cutting Direction
Neutral
Non Ferrous (N) Compatibility
No
Stainless (M) Compatibility
Yes
For Use With
Toolholders, Boring Bars
Cast Iron (K) Compatibility
No
Coating
Tin
Secondary Material Application ISO Code
P, S
Shape
Trigon
Chip-Breaker Style
Double Sided
Coating Process
CVD
Cutting Application
Outside and Inside Diameter Turning
Insert Holding Type
Straight Hole
Clearance Angle
0 Degrees
Measurement System
Fractional Inch
Wiper Insert
Yes
Primary Material Application ISO Code
M
Chip-Breaker Code
FW
Primary Material Application
Stainless Steel
Included Angle
80 Degrees
Manufacturer Grade
WM25CT
Finish - Machining
TiN
Material - Machining
Carbide
ANSI Code
WNMG432FW
Number of Cutting Edges
6
Secondary Material Application
Nickel, Steel, Titanium
Material
Carbide

Description

Turning Insert, Chip-Breaker Code FW, Inscribed Circle 1/2 in, TiN
