  11. Turning Insert, Trigon, 4, WNMG, 2, Carbide

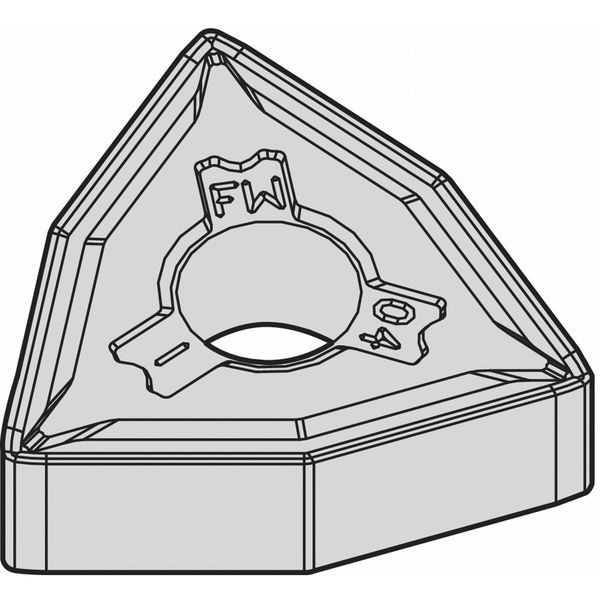

Widia Turning Insert, Trigon, 4, WNMG, 2, Carbide WNMG432FW WP15CT - main

Turning Insert, Trigon, 4, WNMG, 2, Carbide

  • Mfr # WNMG432FW WP15CT

  • Zoro # G2817600

product price: $8.29
/ea
Sold in multiples of 10 for $82.90

Key Features

Insert Shape
Trigon
Insert Style
WNMG
Inscribed Circle
4
Insert Size
432
Chip-Breaker
Yes
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
WNMG432FW WP15CT
Zoro #
G2817600
UPC #
-
Country of Origin
India

Dimensions

Insert Size
432
Corner Radius
2
Mounting Hole Dia.
0.203"
Nose Radius
0.031"
Insert Thickness
0.188"
Thickness
3
Through Hole Inside Dia.
0.2030 in
Cutting Edge Length
8.69mm

Details

Item
Turning Insert
Insert Shape
Trigon
Insert Style
WNMG
Inscribed Circle
4
Chip-Breaker
Yes
Grade
WP15CT
Insert Material
Carbide
Insert Application
Finishing
Rake
Negative
ISO Number
WNMG080408FW
Cutting Direction
Neutral
Workpiece Compatibility
Cast Iron (K), Steel (P)
Cast Iron (K) Compatibility
Yes
Super Alloy (S) Compatibility
No
Stainless (M) Compatibility
No
Mounting Style
Clamp
ANSI Number
WNMG432FW
For Use With
Toolholders, Boring Bars
No. of Edges
6
Non Ferrous (N) Compatibility
No
Coating
Tin
Steel (P) Compatibility
Yes
Hardened (H) Compatibility
No
Relief Angle
0 Degrees
Number of Cutting Edges
6
Included Angle
80 Degrees
Shape
Trigon
Manufacturer Grade
WP15CT
Coating Process
CVD
Material - Machining
Carbide
Chip-Breaker Style
Double Sided
Secondary Material Application
Cast Iron
Clearance Angle
0 Degrees
Cutting Application
Outside and Inside Diameter Turning
Finish - Machining
TiN
Measurement System
Fractional Inch
Wiper Insert
Yes
Chip-Breaker Code
FW
ANSI Code
WNMG432FW
Primary Material Application
Steel
Primary Material Application ISO Code
P
Secondary Material Application ISO Code
K
Insert Holding Type
Straight Hole
Material
Carbide

Description

Turning Insert, Chip-Breaker Code FW, Inscribed Circle 1/2 in, TiN
