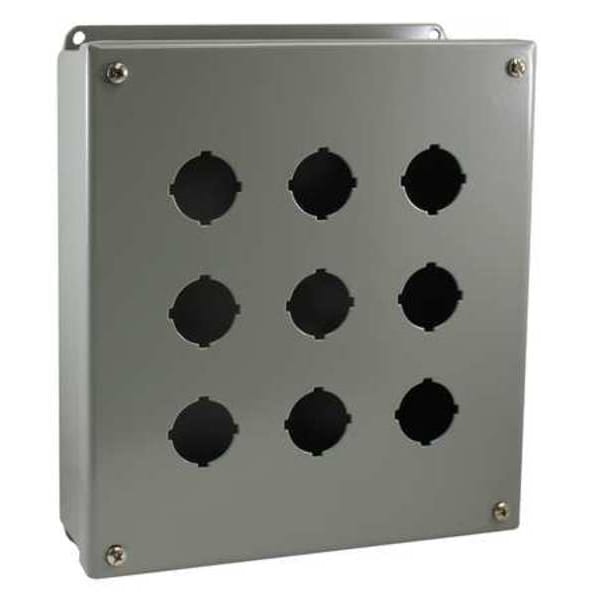

Wiegmann Enclosure, Push Button PB9 - main

Enclosure, Push Button

  • Mfr # PB9

  • Zoro # G2055706

product price: $204.99
/ea
Free Shipping & Returns

Key Features

Number of Columns
3
Hole Size
30 mm
Material
Carbon Steel
Conduit Size
No Conduit Entrance Holes Provided
Number of Holes
9
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
PB9
Zoro #
G2055706
UPC #
786725430352
Country of Origin
Mexico

Dimensions

Hole Size
30 mm
Conduit Size
No Conduit Entrance Holes Provided
Dimensions
9.50 in H x 8.50 in W x 3.09 in D
Height
9.5 in
Width
8.5 in
Depth
3.09 in
Actual Depth
9.500 in
Actual Height
9.500 in
Actual Width
8.500 in
Overall Depth
3 1/8 in
Overall Width
8 13/16 in
Panel Cutout Diameter
30 mm
Compatible Conduit Size - Maximum
No Conduit Entrance Holes Provided
Overall Height
9 3/4 in

Details

Item
Push Button Enclosure
Number of Columns
3
Material
Carbon Steel
Number of Holes
9
NEMA Rating
12, 13, 4
Color
Gray
Includes
Captive Cover Screws, Closed Cell Oil Resistant Gasket
Standards
cULus, UL Listed
Type
Oil Tight
Mounting Style
External Plates
Features
Bodies and doors fabricated from 14 gauge steel. Continuously welded seams ground smooth. Closed cell oil resistant neoprene gasket. External mounting plates, top and bottom of enclosure. Captivated cover screws thread into sealed wells. Standard "4-way" pushbutton holes accept all brands of oil-tight push buttons, switches, and pilot lights. Enclosures have internal detachable hinges to hold cover open during wiring, yet permit quick removal. Grounding provisions provided.
Mounting Type
External Mounting Plates
Series
PB
Cover Type
Pushbutton;Screw
Mounting
External Mounting Plates
Construction
Continuously Welded Seams
Application
Designed to hold all standard brands of pushbuttons, switches, and pilot lights. Provide protection from dust, dirt, oil and water.
Standard
cULus
Listings
UL, CSA
UL Listed
Yes
Certified Listed
cULus
Finish Type
Polyester Powder
Cubic Capacity
900 cu.in
NEMA Enclosure Rating
4

Description

Push Button Enclosure, Number of Columns 3, Number of Holes 9, NEMA Rating 12, 13, 4, Conduit Size No Conduit Entrance Holes Provided, Dimensions 9.50 in H x 8.50 in W x 3.09 in D, Hole Size 30 mm, Material Carbon Steel, Height 9.5 in, Width 8.5 in, Depth 3.09 in, Color Gray, Includes Captive Cover Screws, Closed Cell Oil Resistant Gasket, Type Oil Tight, Mounting Style External Plates, Standards cULus, UL Listed
