  15. Pushbutton Enclosure, 22mm, 9 Holes, Steel

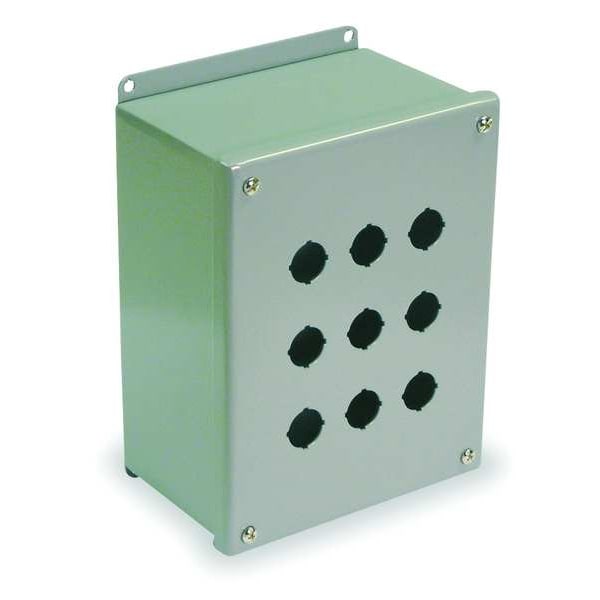

Wiegmann Pushbutton Enclosure, 22mm, 9 Holes, Steel PBGX9 - main

Pushbutton Enclosure, 22mm, 9 Holes, Steel

  • Mfr # PBGX9

  • Zoro # G1254136

product price: $231.99
/ea
Free Shipping & Returns

Key Features

Number of Columns
3
Hole Size
22 mm
Material
Carbon Steel
Conduit Size
No Conduit Entrance Holes Provided
Number of Holes
9
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
PBGX9
Zoro #
G1254136
UPC #
786725431939
Country of Origin
United States

Dimensions

Hole Size
22 mm
Conduit Size
No Conduit Entrance Holes Provided
Dimensions
8.50 in H x 6.50 in W x 4.25 in D
Height
8.5 in
Width
6.5 in
Depth
4.25 in
Actual Depth
4.25 in
Actual Height
8.500 in
Actual Width
6.500 in
Overall Depth
4 in
Panel Cutout Diameter
22 mm
Overall Height
9 in
Overall Width
7 in
Compatible Conduit Size - Maximum
No Conduit Entrance Holes Provided

Details

Item
Push Button Enclosure
Number of Columns
3
Material
Carbon Steel
Number of Holes
9
NEMA Rating
12, 13
Color
Gray
Standards
cULus, UL Listed
Mounting Style
External Plates
Includes
Captive Cover Screws, Closed Cell Oil Resistant Gasket
Type
Miniature
Features
Fabricated from 14 gauge steel. Continuously welded seams ground smooth. Closed cell oil resistant neoprene gasket. External mounting plates, top and bottom of enclosure. Captivated cover screws thread into sealed wells. Standard "4-way" miniature pushbutton holes accept all standard brands of miniature push buttons, switches, and pilot lights. Enclosures have internal detachable hinges to hold cover open during wiring, yet permit quick removal. Grounding provisions provided.
Mounting
External Mounting Plates
Mounting Type
External Mounting Plates
Series
PBGX
Application
Designed to hold all standard brands of miniature oil-tight pushbuttons, switches, and pilot lights. Provide protection from dust, dirt, oil, and water.
Cover Type
Pushbutton;Screw
Standard
cULus
Construction
Continuously Welded Seams
Listings
UL, CSA
Finish Type
Polyester Powder
Certified Listed
cULus
Cubic Capacity
252 cu.in
UL Listed
Yes
NEMA Enclosure Rating
12

Description

Push Button Enclosure, Number of Columns 3, Number of Holes 9, NEMA Rating 12, 13, Conduit Size No Conduit Entrance Holes Provided, Dimensions 8.50 in H x 6.50 in W x 4.25 in D, Hole Size 22 mm, Material Carbon Steel, Height 8.5 in, Width 6.5 in, Depth 4.25 in, Color Gray, Includes Captive Cover Screws, Closed Cell Oil Resistant Gasket, Type Miniature, Mounting Style External Plates, Standards cULus, UL Listed
