Wilkerson

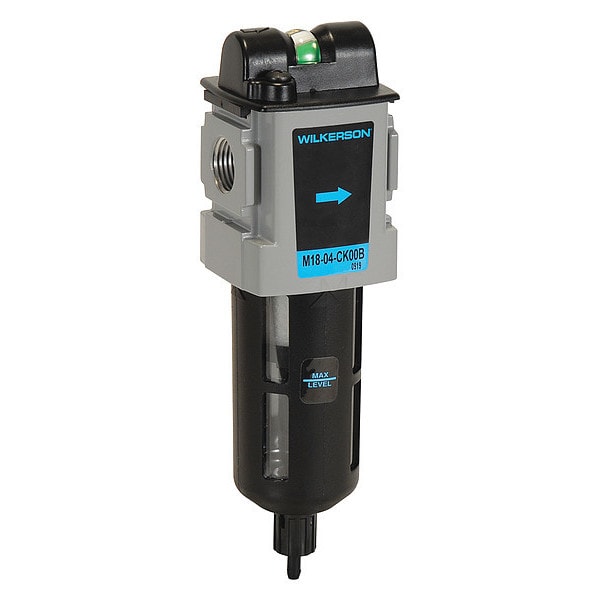

Compressed Air Filter, 0.5 micron Rating

product price: $94.79
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Overall Width 2 3/8 in
  • Includes Differential Pressure Indicator
  • Filter Rating 0.5 micron
  • Overall Height 8 3/8 in
  • Max. Flow - Air Treatment 100 cfm
See all product information

Product Information

Dimensions

Overall Width 2 3/8 in
Overall Height 8 3/8 in
Bowl Size - Air Treatment 1.7 oz
Connection Size - Air Treatment 1/2 in NPT
Overall Depth 2 3/8 in
Size - Air Treatment Compact
Drain Port Size 3/16 in
Air Inlet Size 1/2 in
Air Outlet Size 1/2 in

Details

Includes Differential Pressure Indicator
Filter Rating 0.5 micron
Max. Flow - Air Treatment 100 cfm
Max. Incoming Pressure - Air Treatment 150 psi
Item Compressed Air Filter
Max. Temp. 125 Degrees F
For Removal Of Aerosol, Mist, Oil Fog, Particles
Drain Type Manual
Item - Air Filters Compressed Air Filter
Filter Rating - Air Treatment 0.5 micron
Bowl Material - Air Treatment Polycarbonate with Guard
Weight 0.71 lb
Maximum Operating Pressure 150 psi
Modular Connection Modular Connection
Number of Air Inlets 1
Filter Bowl Material Plastic
Number of Air Outlets 1
Air Inlet Type NPT
Filter Element Material Borosilicate Cloth
Drain Included Yes
Body Material Aluminum
Series M18
System Location Air Line
For Substance Type Oil Aerosols, Solid Particulate, Water
Seal Material Nitrile
Filter Bowl Capacity 1.7 oz
Maximum Flow Rate 85 cfm
Air Outlet Type NPT
Filter Type Coalescing
Minimum Operating Temperature -13 Degrees F
Maximum Operating Temperature 125 Degrees F
Filter Bowl Guard Included Yes
For Fluid Type Oil, Water
Pressure Drop 3 psig
ISO Class 2
Gauge Included No

Description

Compressed Air Filter, Filter Type Coalescing, Air Inlet Size 1/2 in, Air Inlet Type NPT, Maximum Flow Rate 85 cfm, Maximum Operating Pressure 150 psi, Maximum Operating Temperature 125 Degrees F, Overall Width 2 3/8 in, Overall Height 8 3/8 in, Drain Included Yes, Filter Bowl Material Plastic, Drain Type Manual, Series M18, Air Outlet Size 1/2 in, Air Outlet Type NPT, Body Material Aluminum, Filter Bowl Capacity 1.7 oz, Filter Bowl Guard Included Yes, Filter Element Material Borosilicate Cloth
