Wilkerson

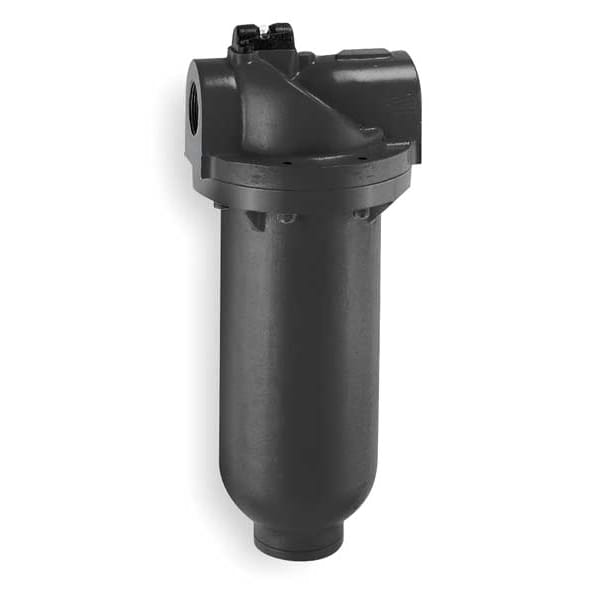

Compressed Air Filter, 150 psi, 7.8 In. W

product price: $725.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Bowl Size 120 oz.
  • Max. Incoming Pressure - Air Treatment 150 psi
  • Connection Size - Air Treatment 1-1/2 in NPT
  • Overall Height 19 1/16 in
  • Size Jumbo
See all product information

Product Information

Dimensions

Bowl Size 120 oz.
Connection Size - Air Treatment 1-1/2 in NPT
Overall Height 19 1/16 in
Size Jumbo
Overall Width 7 3/4 in
Bowl Size - Air Treatment 120.0 oz
Size - Air Treatment Jumbo
Pipe Size 1-1/2" NPT
Overall Depth 7 13/16 in
Air Inlet Size 1 1/2 in
Air Outlet Size 1 1/2 in

Details

Item - Air Filters General Purpose Filter
Max. Incoming Pressure - Air Treatment 150 psi
Filter Rating 5 micron
Max. Flow 1050 cfm
Max. Pressure 150 psi
Max. Flow - Air Treatment 1,050 cfm
Filter Rating - Air Treatment 5 micron
Bowl Material - Air Treatment Metal
Max. Temp. 150 Degrees F
Bowl Material Metal
Item Compressed Air Filter
Drain Type Manual
Type General Purpose
Weight 19.3 lb
Maximum Operating Pressure 150 psi
Number of Air Outlets 1
Drain Included Yes
Filter Type Particulate
Filter Bowl Material Metal
Body Material Aluminum
Maximum Flow Rate 1,280 cfm
Minimum Operating Temperature 32 Degrees F
Number of Air Inlets 1
ISO Class 3
Filter Bowl Capacity 12.5 oz
Includes 1/2 in NPT BSPP-G Drain Plate
For Substance Type Water, Particulate Contamination
Series F35
Air Inlet Type NPT
Seal Material Fluorocarbon
Air Outlet Type NPT
For Fluid Type Water
Filter Element Material Polyethylene
System Location Air Line
Maximum Operating Temperature 150 Degrees F
Pressure Drop 5 psid
Gauge Included No

Description

Compressed Air Filter, Filter Type Particulate, Air Inlet Size 1 1/2 in, Air Inlet Type NPT, Maximum Flow Rate 1,280 cfm, Maximum Operating Pressure 150 psi, Maximum Operating Temperature 150 Degrees F, Overall Width 7 3/4 in, Overall Height 19 1/16 in, Drain Included Yes, Filter Bowl Material Aluminum, Drain Type Manual, Series F35, Air Outlet Size 1 1/2 in, Air Outlet Type NPT, Body Material Aluminum, Filter Bowl Capacity 12.5 oz, Filter Element Material Polyethylene, Filter Rating 5 micron
