  11. Backflow Preventer, 3/4" Size, F Flange, 175 psi

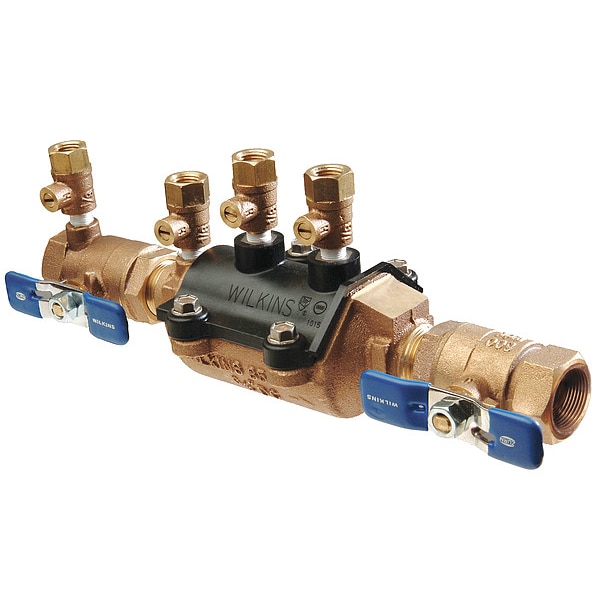

Wilkins Backflow Preventer, 3/4" Size, F Flange, 175 psi 34-350 - main

Backflow Preventer, 3/4" Size, F Flange, 175 psi

  • Mfr # 34-350

  • Zoro # G3952949

product price: $317.99
/ea
Free Shipping & Returns

Key Features

Body Material
Cast Bronze
Temp. Range
33 Degrees to 180 Degrees F
Width
1 1/4 in
Pipe Size
3/4"
Max. Pressure
175 psi
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
34-350
Zoro #
G3952949
UPC #
612052081380
Country of Origin
Taiwan, Province of China

Dimensions

Width
1 1/4 in
Pipe Size
3/4"
Length
11 in
Size
3/4 in
Height
3 3/4 in
Overall Height
4.25 in
Connection Size - Side 1
3/4 in
Overall Width
3.75 in
Connection Size - Side 2
3/4 in
Nominal Valve Size
3/4 in
Overall Length
11 in
Check Valve Length
6 5/8 in

Details

Item
Backflow Preventer
Body Material
Cast Bronze
Temp. Range
33 Degrees to 180 Degrees F
Max. Pressure
175 psi
Features
Corrosion Resistant, Durable, Pressure Vessel is Serviceable Off-Line and Reusable, Removable Pressure Vessel for Simple Line Flushing to Remove Fouling Debris, UV Resistant, Winterization Prevents Costly Freeze Damage and Improves Productivity When Freeze is Quickly Approaching
Compliance
ASSE 1015, CSA B64.5, IAPMO
Connection
MNPT
Max. Temp.
180 Degrees F
Series
Wilkins 350
Standards
ASSE, AWWA, CSA, IAPMO
Spring Material
Stainless Steel
Flow
43 gpm
Handle Material
Stainless Steel
For Media
Water
Connection Gender - Side 1
Female
Connection Type - Side 1
Flange
Hazard Protection Level
Low Health Hazard
Operating Temperature - Maximum
180 Degrees F
Includes Freeze Sensor
No Freeze Sensor
Backflow Preventer Type
Double Check Assembly (DC)
Connection Type - Side 2
Flange
Connection Gender - Side 2
Female
Maximum Pressure - Operating
175 psi
Shut-Off Valve Included
Ball Valve
Operating Temperature - Minimum
33 Degrees F
Includes Strainer
No Strainer
Mounting Orientation
Horizontal, Vertical
Valve Series
350

Description

BackflowPreventer3/4"Size F Flange175psi

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
This is a restricted item in the USA. It cannot be used for potable water applications.
