Shop WILKINS

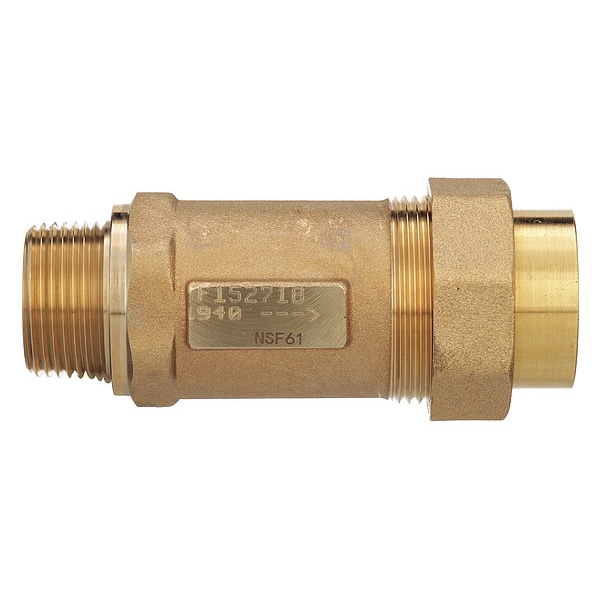

Dual Check Valve, Bronze, 1, MNPTxFNPT

  • Mfr # 1MX1UF-700XL

  • Zoro # G4452402

product price:  $138.99
/ea
Free Shipping & Returns

Key Features

Pipe Size
1"
Connection Type
MNPT x Union FNPT
Connection
MNPT x FNPT
Body Material
Cast Bronze ASTM B 584
Flow Design
Dual
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
1MX1UF-700XL
Zoro #
G4452402
UPC #
612052094113
Country of Origin
Taiwan, Province of China

Dimensions

Pipe Size
1"
Width
2"
Length
4 1/2 in
Pipe or Tube Size - Check Valves
1 in
Overall Height
2 in
Overall Length
4.5 in
Pipe or Tube Size
1 in
Overall Width
2 in
Connection Size - Side 1
1 in
Nominal Valve Size
1 in
Connection Size - Side 2
1 in
Wire Rope Length
4.5 in

Details

Connection Type
MNPT x Union FNPT
Connection
MNPT x FNPT
Body Material
Cast Bronze ASTM B 584
Flow Design
Dual
Item
Dual Check Valve
Body Material - Valves
Bronze
Material of Construction
Low Lead Bronze
Mechanism and Body Design
Inline
Max. Temp. - Valves
180 Degrees F
Connection Type - Check Valves
MNPT x FNPT
Item - Check Valves
Check Valve
Application - Valves
General Purpose
Max. Pressure
175 psi
Max. Steam Pressure - Valves
Not Rated
Standards
ASSE, CSA, NSF/ANSI/CAN 61
Seat Material
Delrin
Spring Material
Stainless Steel
Flow
40 gpm
Connection Gender - Side 2
Female
Maximum Pressure - Operating
175 psi
For Media
Water
Operating Temperature - Minimum
33 Degrees F
Mounting Orientation
Horizontal, Vertical
Connection Type - Side 1
NPT
Field Testable
Not Field Testable
Operating Temperature - Maximum
180 Degrees F
Maximum Pressure - Steam
Not Rated
Connection Type - Side 2
NPT
Connection Gender - Side 1
Male
Hazard Protection Level
Low Health Hazard
Valve Series
700XL

Description

Dual Check Valve, Size 1 In., Connection MNPT x Union FNPT, Body Material Bronze, Max. Temp. 180 Degrees , Max. Pressure 175 psi, Length 4 1/2 in, Standards ASSE, CSA, NSF/ANSI/CAN 61

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
