  11. Mixing Valve, Low Lead Bronze, 145 psi

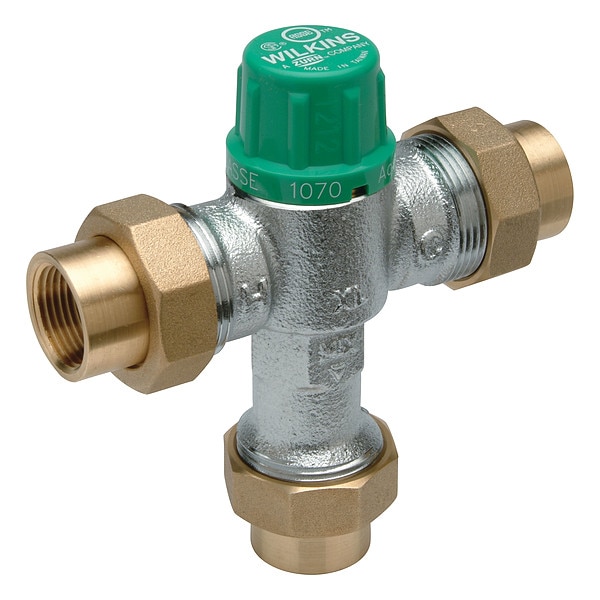

Wilkins Mixing Valve, Low Lead Bronze, 145 psi 12-ZW1070XL - main

Mixing Valve, Low Lead Bronze, 145 psi

  • Mfr # 12-ZW1070XL

  • Zoro # G5064552

product price: $286.99
/ea
Free Shipping & Returns

Key Features

Inlet Size
1/2 in
Outlet Type
FNPT
Flow Rate
0.5 to 10 gpm
Inlet Type
FNPT
Standards
ASSE 1070, CSA B125.70, cUPC, NSF/ANSI/CAN 61-9
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
12-ZW1070XL
Zoro #
G5064552
UPC #
612052075082
Country of Origin
Taiwan, Province of China

Dimensions

Inlet Size
1/2 in
Overall Width
5 13/16 in
Overall Height
5 7/16 in
Outlet Size
1/2 in
Size
1/2"
Inlet Connection Size - Hot
1/2 in
Inlet Connection Size - Cold
1/2 in
Outlet Connection Size
1/2 in
Overall Length
5 1/4 in

Details

Item
Thermostatic Mixing Valve
Outlet Type
FNPT
Flow Rate
0.5 to 10 gpm
Inlet Type
FNPT
Standards
ASSE 1070, CSA B125.70, cUPC, NSF/ANSI/CAN 61-9
Max. Pressure
145 psi
Inlet Temperature (Cold)
40 Degrees to 75 Degrees F
Inlet Temperature (Hot)
120 Degrees to 195 Degrees F
Temp. Range
95 Degrees to 115 Degrees F
Body Material
Cast Bronze
Material of Construction
Low Lead Bronze
Connection
FNPT
Inlet Temperature - Minimum Cold
39 Degrees F
Operating Temperature - Maximum Outlet
115 Degrees F
Inlet Connection Type - Cold
NPT
For Media
Hot Water, Water
Inlet Connection Type - Hot
NPT
Inlet Connection Gender - Cold
Female
Operating Pressure - Minimum
125 psi
Seal Material
FKM
Operating Pressure - Maximum
145 psi
Includes Temperature Gauge
Temperature Gauge Not Included
Outlet Connection Type
NPT
Inlet Temperature - Maximum Cold
80 Degrees F
Inlet Connection Gender - Hot
Female
Inlet Temperature - Maximum Hot
195 Degrees F
Operating Temperature - Minimum Outlet
95 Degrees F
Valve Type
Thermostatic
Inlet Temperature - Minimum Hot
120 Degrees F

Description

Thermostatic Mixing Valve, Body Material Cast Bronze, Flow Rate 0.5 to 10 gpm, Inlet Type FNPT, Outlet Type FNPT, Inlet Size 1/2 in, Outlet Size 1/2 in, Temp. Range 95 Degrees to 115 Degrees F, Max. Pressure 145 psi, Overall Height 5 7/16 in, Overall Width 5 13/16 in, Inlet Temperature (Cold) 40 Degrees to 75 Degrees F, Inlet Temperature (Hot) 120 Degrees to 195 Degrees F, Standards ASSE 1070, CSA B125.70, cUPC, NSF/ANSI/CAN 61-9

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
