Shop WILKINS

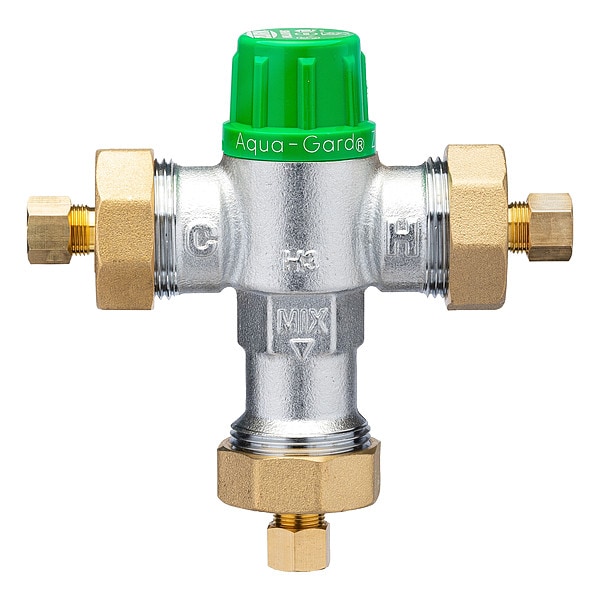

Mixing Valve, Low Lead Bronze

  • Mfr # 38-ZW1070XLCOMP
  • Zoro # G5064534
product price:
$
296.99
/ea
Free Shipping & Returns

Key Features

Inlet Size
3/8 in
Outlet Type
Compression
Flow Rate
0.5 to 10 gpm
Inlet Type
Compression
Outlet Size
3/8 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
38-ZW1070XLCOMP
Zoro #
G5064534
UPC #
612052097596
Country of Origin
Taiwan, Province of China
Item
Thermostatic Mixing Valve
Outlet Type
Compression
Flow Rate
0.5 to 10 gpm
Inlet Type
Compression
Standards
ASSE 1070, CSA B125.70, cUPC, NSF/ANSI/CAN 61-9
Temp. Range
95 Degrees to 115 Degrees F
Max. Pressure
145 psi
Inlet Temperature (Hot)
120 Degrees to 195 Degrees F
Body Material
Cast Bronze
Inlet Temperature (Cold)
40 Degrees to 75 Degrees F
Connection
FNPT
Material of Construction
Low Lead Bronze
Valve Type
Thermostatic
Inlet Temperature - Maximum Hot
195 Degrees F
Operating Pressure - Minimum
125 psi
Inlet Temperature - Minimum Cold
39 Degrees F
Inlet Connection Type - Hot
Compression
Inlet Connection Type - Cold
Compression
Includes Temperature Gauge
Temperature Gauge Not Included
Inlet Temperature - Minimum Hot
120 Degrees F
Operating Temperature - Maximum Outlet
115 Degrees F
Outlet Connection Type
Compression
For Media
Hot Water, Water
Operating Temperature - Minimum Outlet
95 Degrees F
Inlet Temperature - Maximum Cold
80 Degrees F
Operating Pressure - Maximum
145 psi
Seal Material
FKM

Description

Thermostatic Mixing Valve, Body Material Cast Bronze, Flow Rate 0.5 to 10 gpm, Inlet Type Compression, Outlet Type Compression, Inlet Size 3/8 in, Outlet Size 3/8 in, Temp. Range 95 Degrees to 115 Degrees F, Max. Pressure 145 psi, Overall Height 5 11/16 in, Overall Width 5 13/16 in, Inlet Temperature (Cold) 40 Degrees to 75 Degrees F, Inlet Temperature (Hot) 120 Degrees to 195 Degrees F, Standards ASSE 1070, CSA B125.70, cUPC, NSF/ANSI/CAN 61-9
