Shop WILKINS

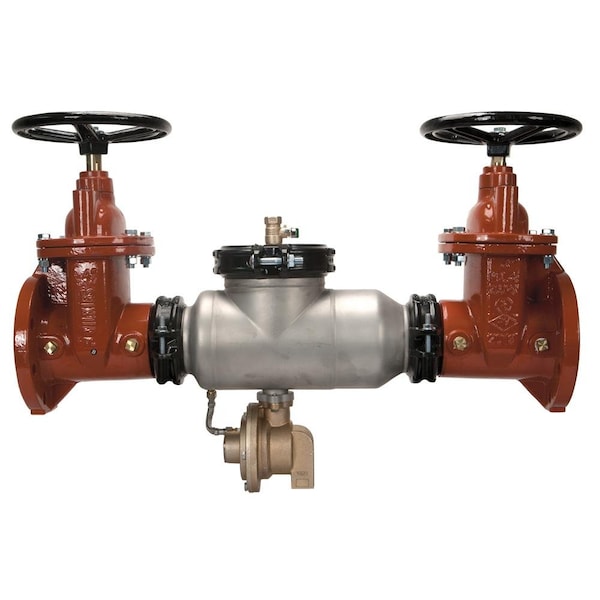

Pressure Principle Backflow Preventer, SS

  • Mfr # 8-375AST

  • Zoro # G013342576

product price:
$
23,871.99
/ea
Additional $285.00 delivery surcharge applies per item.
See details

Key Features

Body Material
Stainless Steel
Overall Height
36.75 in
Spring Material
Stainless Steel
Includes
Reduced Pressure Principle Assembly
Flow
2,300 gpm
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
8-375AST
Zoro #
G013342576
UPC #
612052200804
Country of Origin
United States

Dimensions

Overall Height
36.75 in
Overall Length
52.75 in
Connection Size - Side 2
8 in
Check Valve Length
29 1/2 in
Overall Width
20.25 in
Nominal Valve Size
8 in
Connection Size - Side 1
8 in
Wire Rope Length
52.75 in
Length
52.75 in

Details

Item
Pressure Principle Backflow Preventer
Body Material
Stainless Steel
Spring Material
Stainless Steel
Includes
Reduced Pressure Principle Assembly
Flow
2,300 gpm
Standards
ANSI B16.42 Class 150, ASSE Listed 1013, AWWA Compliant C511 (with Gates only), AWWA Compliant C550, C-UL Classified, Cross Connection Control and Hydraulic Research at the University of Southern California Approved, CSA Certified B64.4, cUPC Listed, FDA Approved, FM Approved, NSF/ANSI/CAN 61, UL Classified
Seat Material
EPDM
Backflow Preventer Type
Reduced Pressure Assembly (RP)
Connection Type - Side 2
Flange
Includes Freeze Sensor
No Freeze Sensor
Operating Temperature - Maximum
140 Degrees F
Maximum Pressure - Operating
175 psi
Seal Material
Buna-N, EPDM
Connection Type - Side 1
Flange
Hazard Protection Level
High Hazard
Operating Temperature - Minimum
33 Degrees F
Mounting Orientation
Horizontal
Shut-Off Valve Included
NRS Gate Valve
For Media
Potable Water
Maximum Pressure - Steam
175 psi
Includes Strainer
No Strainer
Includes Flood Protection
No Flood Protection
Valve Series
375AST

Description

Pressure Principle Backflow Preventer,SS

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
