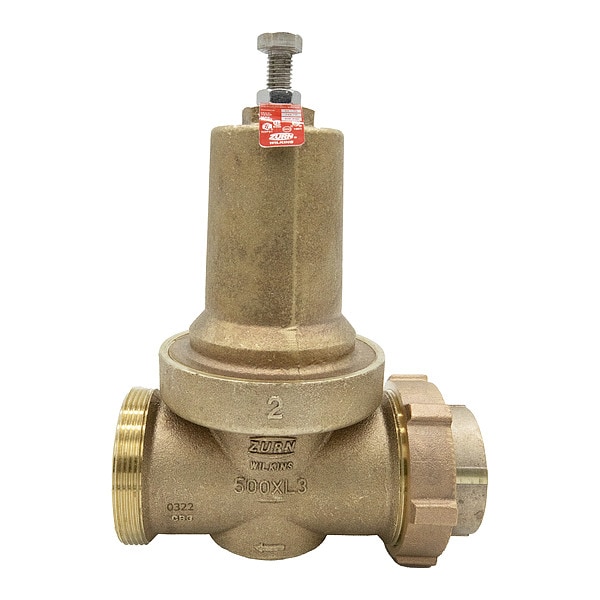

Wilkins Pressure Reducing Valve 2-500XL3 - main

Pressure Reducing Valve

  • Mfr # 2-500XL3

  • Zoro # G503658804

product price: $2,204.99
/ea
Free Shipping & Returns

Key Features

Pipe Size
2 in
Connection Type
FNPT Union x FNPT
Body Material
Bronze
Max. Pressure
400 psi
Max. Temp.
140 Degrees F
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
2-500XL3
Zoro #
G503658804
UPC #
612052318028
Country of Origin
China

Dimensions

Pipe Size
2 in
Overall Height
11 3/16 in
Length
7 3/16 in
Height
11 in
Inlet Connection Size
2 in
Outlet Connection Size
2 in
Overall Width
4 5/8 in

Details

Connection Type
FNPT Union x FNPT
Body Material
Bronze
Max. Pressure
400 psi
Max. Temp.
140 Degrees F
Item
Pressure Reducing Valve
Preset Pressure Settings
50 psi
Factory Set Pressure
50 psi
Valve Type
Pressure Reducing Valve
Pressure Adjustment Range
25 to 75 psi
Compliance
ASSE(R) Listed 1003, CSA(R) Certified, IAPMO(R) Listed, NSF/ANSI 61 /CAN 61 & 372
Strainer
No
Standards
ASSE, CSA, cUPC
Material
Lead Free Bronze, Stainless Steel
Application
Commercial Use, Residential Use
Inlet Connection Gender
Female
Pilot Adjustment - Maximum
75 psi
Union Type
Single
Includes Strainer
Strainer Not Included
For Media
Water
Outlet Connection Type
NPT
Coating/Lining
NSF Listed Fusion Bonded Epoxy Lining and Coating
Operating Pressure - Minimum
15 psi
NSF Certifications for Food and Drinking Water
NSF 372, NSF 61
Pilot Adjustment - Minimum
25 psi
Operating Pressure - Maximum
400 psi
Outlet Connection Gender
Female
Fluid Temperature - Maximum
140 Degrees F
Inlet Connection Type
NPT
Port Design
Full Port
Flow Rate - Continuous Maximum
100.1 gpm

Description

Pressure Reducing Valve

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
