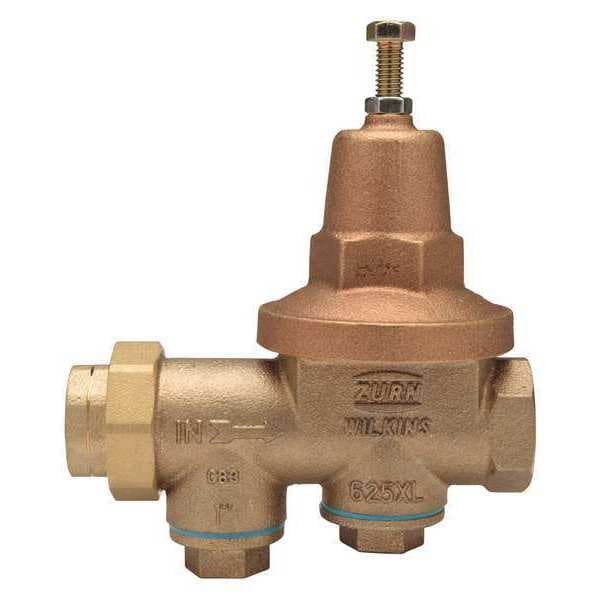

Wilkins Pressure Reducing Valve, FNPT, 6" L 1-625XL - main

Pressure Reducing Valve, FNPT, 6" L

  • Mfr # 1-625XL

  • Zoro # G8040667

product price: $483.99
/ea
Free Shipping & Returns

Key Features

Pipe Size
1"
Connection Type
FNPT Union x FNPT
Body Material
Bronze
Max. Pressure
300 psi
Max. Temp.
140 Degrees F
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
1-625XL
Zoro #
G8040667
UPC #
612052274287
Country of Origin
United States

Dimensions

Pipe Size
1"
Height
7 1/4 in
Length
6 in
Overall Width
7 7/8 in
Inlet Connection Size
1 in
Outlet Connection Size
1 in
Overall Height
7 13/16 in

Details

Connection Type
FNPT Union x FNPT
Body Material
Bronze
Max. Pressure
300 psi
Max. Temp.
140 Degrees F
Item
Water Pressure Reducing Valve
Strainer
Yes
Includes
Strainer
Material
Lead Free Bronze
Valve Type
Standard
Standards
ASSE 1003, CSA Certified, IAPMO
Application
Separate Strainer Cap Allows Clean Task to be Completed Very Rapidly
Compliance
ANSI/NSF 61
Preset Pressure Settings
50 psi
Pressure Adjustment Range
25 to 75 psi
Inlet Connection Gender
Female
For Media
Water
Outlet Connection Type
NPT
Pilot Adjustment - Minimum
25 psi
Includes Strainer
Strainer Included
Coating/Lining
NSF Listed Fusion Bonded Epoxy Lining and Coating
Inlet Connection Type
NPT
Flow Rate - Continuous Maximum
42.3 gpm
Outlet Connection Gender
Female
Union Type
Single
Pilot Adjustment - Maximum
75 psi
Fluid Temperature - Maximum
140 Degrees F
NSF Certifications for Food and Drinking Water
NSF 61
Operating Pressure - Maximum
300 psi
Operating Pressure - Minimum
25 psi
Factory Set Pressure
50 psi
Seat Material
Stainless Steel
Port Design
Full Port

Description

Pressure Reducing Valve,FNPT,6" L
