  11. Pressure Reducing Valve FNPT x FNPT 3 in Pipe

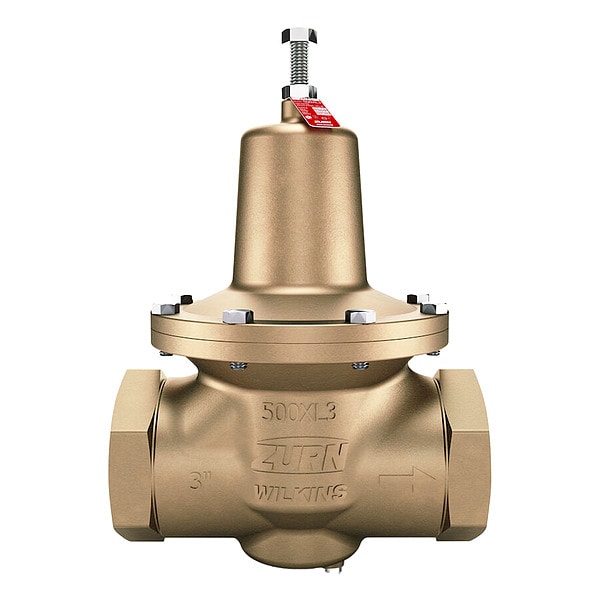

Wilkins Pressure Reducing Valve FNPT x FNPT 3 in Pipe 3-500XL3 - main

Pressure Reducing Valve FNPT x FNPT 3 in Pipe

  • Mfr # 3-500XL3

  • Zoro # G703658697

product price: $5,029.99
/ea
Free Shipping & Returns

Key Features

Pipe Size
3 in
Connection Type
FNPT x FNPT
Body Material
Bronze
Max. Pressure
400 psi
Max. Temp.
140 Degrees F
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
3-500XL3
Zoro #
G703658697
UPC #
612052318127
Country of Origin
China

Dimensions

Pipe Size
3 in
Overall Height
13 in
Length
8 13/16 in
Height
13 1/16 in
Outlet Connection Size
3 in
Inlet Connection Size
3 in
Overall Width
7 5/16 in

Details

Connection Type
FNPT x FNPT
Body Material
Bronze
Max. Pressure
400 psi
Max. Temp.
140 Degrees F
Item
Pressure Reducing Valve
Pressure Adjustment Range
25 to 75 psi
Preset Pressure Settings
50 psi
Factory Set Pressure
50 psi
Material
Lead Free Bronze, Stainless Steel
Standards
ASSE, CSA, cUPC
Valve Type
Pressure Reducing Valve
Application
Commercial Use, Residential Use
Strainer
No
Compliance
ASSE(R) Listed 1003, CSA(R) Certified, IAPMO(R) Listed, NSF/ANSI 61 /CAN 61 & 372
Fluid Temperature - Maximum
140 Degrees F
For Media
Water
Pilot Adjustment - Minimum
25 psi
Includes Strainer
Strainer Not Included
Operating Pressure - Minimum
15 psi
Flow Rate - Continuous Maximum
350 gpm
NSF Certifications for Food and Drinking Water
NSF 372, NSF 61
Pilot Adjustment - Maximum
75 psi
Union Type
No Union
Inlet Connection Gender
Female
Operating Pressure - Maximum
400 psi
Inlet Connection Type
NPT
Coating/Lining
NSF Listed Fusion Bonded Epoxy Lining and Coating
Port Design
Full Port
Outlet Connection Gender
Female
Outlet Connection Type
NPT

Description

This item is a pressure reducing valve used to reduce and control incoming water pressure based on the specified adjustment range. It features a lead-free bronze body with FNPT inlet and outlet connections and a full port design for operation within the specified pressure and temperature limits. The valve has an adjustable pressure range as specified and is factory preset to the specified outlet pressure.

Key Features:

  • Valve Type: Pressure reducing valve for water systems.
  • Pressure Adjustment Range: Adjustment range is specified from 25 to 75 psi with a factory preset of 50 psi.
  • Pressure Rating: Rated for operating pressures up to 400 psi.
  • Temperature Rating: Rated for fluid temperatures up to 140°F.
  • Flow Capacity: Continuous flow rate specified up to 350 gpm.
  • Construction Materials: Lead-free bronze body with stainless steel components and epoxy-coated interior.
  • Connections: 3 in female NPT inlet and outlet connections.
  • Port Design: Full port configuration based on the specified full port design.

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
