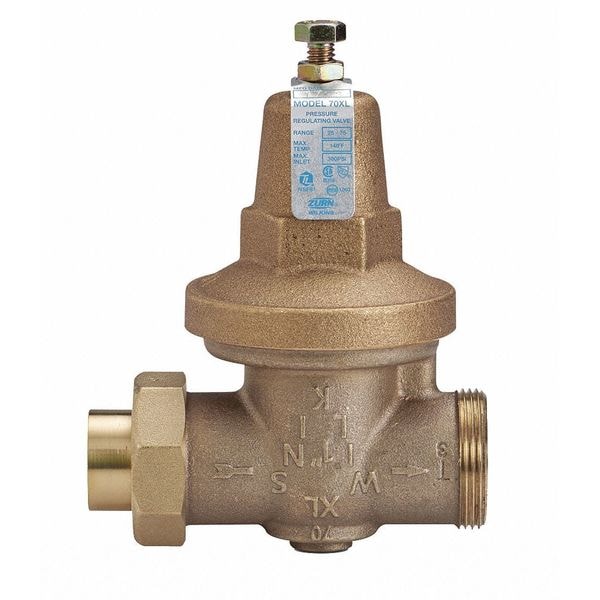

Wilkins Valve, 1" Pipe Sz, Bronze, 5-7/8"L, Standard 1-70XLDUC - main

Valve, 1" Pipe Sz, Bronze, 5-7/8"L, Standard

  • Mfr # 1-70XLDUC

  • Zoro # G3784641

product price: $298.99
/ea
Free Shipping & Returns

Key Features

Pipe Size
1"
Inlet Size
1"
Connection Type
Double Union Female CU SWT
Body Material
Bronze
Max. Pressure
300 psi
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
1-70XLDUC
Zoro #
G3784641
UPC #
612052077055
Country of Origin
Taiwan, Province of China

Dimensions

Pipe Size
1"
Inlet Size
1"
Height
6 11/16 in
Length
5 7/8 in
Overall Height
6 1/2 in
Inlet Connection Size
1 in
Outlet Connection Size
1 in
Overall Width
3 5/16 in

Details

Connection Type
Double Union Female CU SWT
Body Material
Bronze
Max. Pressure
300 psi
Max. Temp.
140 Degrees F
Item
Water Pressure Reducing Valve
Pressure Adjustment Range
25 to 75 psi
Valve Type
Standard
Standards
ASSE 1003, CSA, IAPMO, NSF
Compliance
ANSI/NSF 61
Material
Lead Free Bronze
Strainer
Yes
Application
Residential and Commercial
Preset Pressure Settings
50 psi
Seat Material
Stainless Steel
Factory Set Pressure
50 psi
Inlet Connection Gender
Female
Operating Pressure - Minimum
25 psi
Coating/Lining
NSF Listed Fusion Bonded Epoxy Lining and Coating
Pilot Adjustment - Maximum
75 psi
Includes Strainer
Strainer Included
Operating Pressure - Maximum
300 psi
Fluid Temperature - Maximum
140 Degrees F
Union Type
Double
For Media
Water
Pilot Adjustment - Minimum
25 psi
Inlet Connection Type
NPT
Port Design
Full Port
Flow Rate - Continuous Maximum
42.3 gpm
NSF Certifications for Food and Drinking Water
NSF 61

Description

Valve,1" Pipe Sz,Bronze,5-7/8"L,Standard

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
