  11. Valve, 3/4" Pipe Size, Double Union FNPT

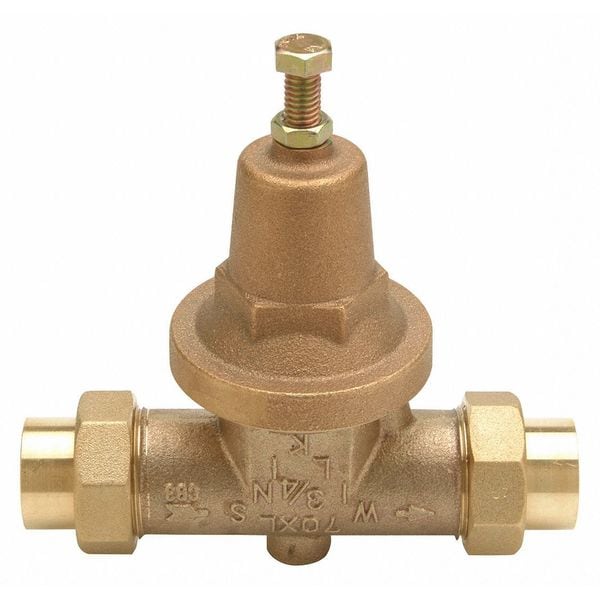

Wilkins Valve, 3/4" Pipe Size, Double Union FNPT 34-70XLDU - main

Valve, 3/4" Pipe Size, Double Union FNPT

  • Mfr # 34-70XLDU

  • Zoro # G3784809

product price: $257.99
/ea
Free Shipping & Returns

Key Features

Pipe Size
3/4"
Inlet Size
3/4"
Connection Type
Double Union FNPT
Body Material
Bronze
Max. Pressure
300 psi
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
34-70XLDU
Zoro #
G3784809
UPC #
612052076461
Country of Origin
Taiwan, Province of China

Dimensions

Pipe Size
3/4"
Inlet Size
3/4"
Height
6 in
Length
6 in
Overall Height
5 1/2 in
Overall Width
2 13/16 in
Inlet Connection Size
3/4 in
Outlet Connection Size
3/4 in

Details

Connection Type
Double Union FNPT
Body Material
Bronze
Max. Pressure
300 psi
Max. Temp.
140 Degrees F
Item
Water Pressure Reducing Valve
Material
Lead Free Bronze
Pressure Adjustment Range
25 to 75 psi
Preset Pressure Settings
50 psi
Valve Type
Standard
Standards
ASSE 1003, CSA, IAPMO, NSF
Compliance
ANSI/NSF 61
Application
Residential and Commercial
Strainer
Yes
Factory Set Pressure
50 psi
Seat Material
Stainless Steel
Pilot Adjustment - Minimum
25 psi
Includes Strainer
Strainer Included
Pilot Adjustment - Maximum
75 psi
Outlet Connection Gender
Female
Operating Pressure - Maximum
300 psi
NSF Certifications for Food and Drinking Water
NSF 61
Operating Pressure - Minimum
25 psi
Inlet Connection Gender
Female
Inlet Connection Type
NPT
Outlet Connection Type
NPT
Union Type
Double
Fluid Temperature - Maximum
140 Degrees F
Coating/Lining
NSF Listed Fusion Bonded Epoxy Lining and Coating
Port Design
Full Port
Flow Rate - Continuous Maximum
25.1 gpm
For Media
Water

Description

Valve,3/4" Pipe Size,Double Union FNPT

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
