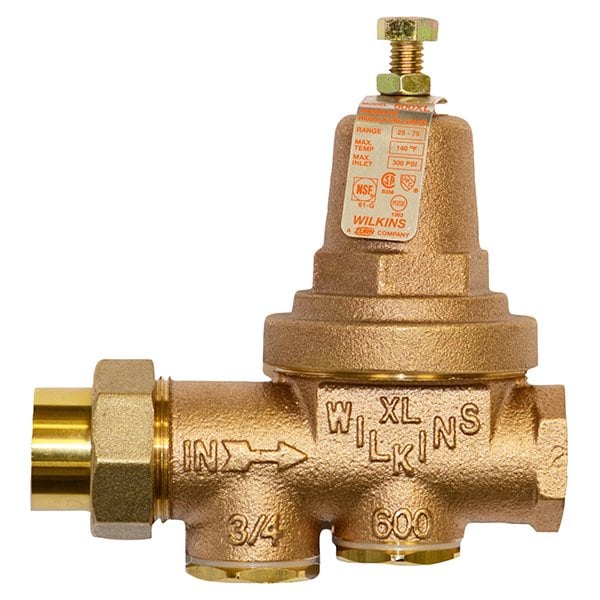

Wilkins Water Pressure Reducing Valve 1-600XLHR - main

Water Pressure Reducing Valve

  • Mfr # 1-600XLHR

  • Zoro # G608230011

product price: $531.99
/ea
Free Shipping & Returns

Key Features

Body Material
Cast Bronze
Max. Pressure
300 psi
Max. Temp.
140 Degrees F
Compliance
ANSI, ASSE Listed 1003, ASTM B584, Can 61, CSA Certified, EPDM, FDA Approved, IAPMO Listed, NSF Certified, XL Lead Free
Material
Low Lead Cast Bronze
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
1-600XLHR
Zoro #
G608230011
UPC #
612052079813
Country of Origin
United States

Dimensions

Pipe Size
1 in
Overall Height
6 1/2 in
Overall Width
3 5/16 in
Outlet Connection Size
1 in
Inlet Connection Size
1 in

Details

Body Material
Cast Bronze
Max. Pressure
300 psi
Max. Temp.
140 Degrees F
Item
Water Pressure Reducing Valve
Compliance
ANSI, ASSE Listed 1003, ASTM B584, Can 61, CSA Certified, EPDM, FDA Approved, IAPMO Listed, NSF Certified, XL Lead Free
Material
Low Lead Cast Bronze
Standards
ASSE 1003, City of Los Angeles Approved, CSA, IAPMO
Valve Type
Pressure Reducing Valve
Application
Commercial Use, Residential Use
Operating Pressure - Maximum
300 psi
Pilot Adjustment - Maximum
75 psi
NSF Certifications for Food and Drinking Water
NSF 61
Union Type
Single
Seat Material
Stainless Steel
Operating Pressure - Minimum
25 psi
Port Design
Full Port
For Media
Water
Pilot Adjustment - Minimum
25 psi
Inlet Connection Gender
Female
Factory Set Pressure
50 psi
Outlet Connection Type
NPT
Includes Strainer
Strainer Included
Inlet Connection Type
NPT
Fluid Temperature - Maximum
140 Degrees F
Outlet Connection Gender
Female
Flow Rate - Continuous Maximum
42.3 gpm
Coating/Lining
NSF Listed Fusion Bonded Epoxy Lining and Coating

Description

Water Pressure Reducing Valve
