  11. Water Pressure Reducing Valve, 1/2 In.

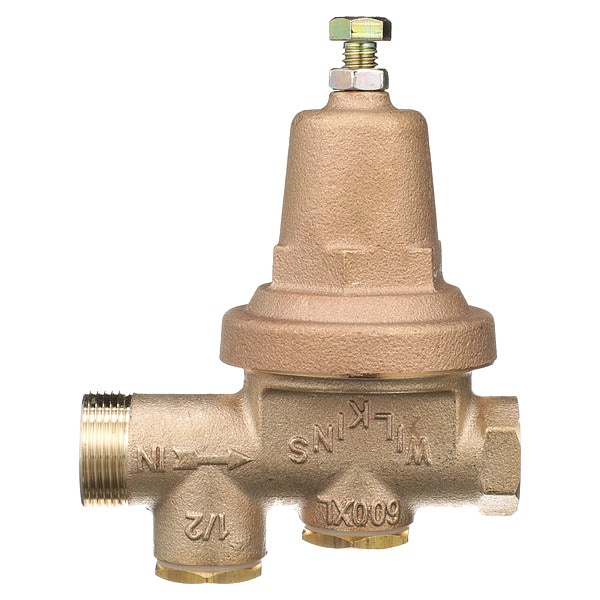

Wilkins Water Pressure Reducing Valve, 1/2 In. 12-600XL - main

Water Pressure Reducing Valve, 1/2 In.

  • Mfr # 12-600XL

  • Zoro # G4451596

product price: $328.99
/ea
Free Shipping & Returns

Key Features

Pipe Size
1/2"
Connection Type
FNPT Union x FNPT
Body Material
Bronze
Max. Pressure
300 psi
Max. Temp.
140 Degrees F
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
12-600XL
Zoro #
G4451596
UPC #
612052029566
Country of Origin
United States

Dimensions

Pipe Size
1/2"
Height
6 1/4 in
Length
5 1/2 in
Overall Height
6 3/16 in
Overall Width
2 3/4 in
Outlet Connection Size
1/2 in
Inlet Connection Size
1/2 in

Details

Connection Type
FNPT Union x FNPT
Body Material
Bronze
Max. Pressure
300 psi
Max. Temp.
140 Degrees F
Item
Water Pressure Reducing Valve
Preset Pressure Settings
50 psi
Pressure Adjustment Range
25 to 75 psi
Strainer
Yes
Material
Bronze
Standards
Annex G, ASSE 1003, City of Los Angeles, CSA, IAPMO R&T, NSF 61
Valve Type
Standard
Application
Separate Strainer Cap Allows Clean Task to be Completed Very Rapidly
Material of Construction
Bronze
Connection
FNPT Union x FNPT
Seat Material
Stainless Steel
Factory Set Pressure
50 psi
Union Type
Single
Includes Strainer
Strainer Included
Pilot Adjustment - Maximum
75 psi
Inlet Connection Type
NPT
Operating Pressure - Maximum
300 psi
Inlet Connection Gender
Female
Fluid Temperature - Maximum
140 Degrees F
Pilot Adjustment - Minimum
25 psi
Port Design
Full Port
For Media
Water
Outlet Connection Gender
Female
Coating/Lining
NSF Listed Fusion Bonded Epoxy Lining and Coating
Flow Rate - Continuous Maximum
16.6 gpm
Outlet Connection Type
NPT
Operating Pressure - Minimum
25 psi
NSF Certifications for Food and Drinking Water
NSF 61

Description

Water Pressure Reducing Valve,1/2 In.

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
