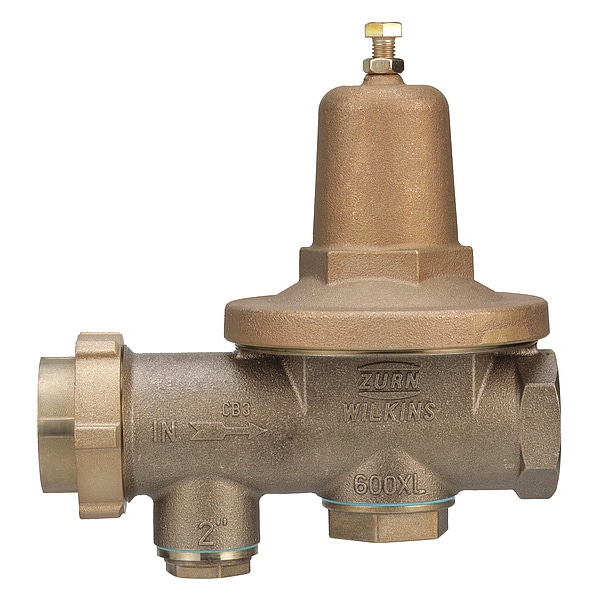

Wilkins Water Pressure Reducing Valve, 2" 2-600XL - main

Water Pressure Reducing Valve, 2"

  • Mfr # 2-600XL

  • Zoro # G4451571

product price: $1,552.99
/ea
Free Shipping & Returns

Key Features

Pipe Size
2"
Connection Type
FNPT Union x FNPT
Body Material
Bronze
Max. Pressure
300 psi
Max. Temp.
140 Degrees F
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
2-600XL
Zoro #
G4451571
UPC #
612052029610
Country of Origin
China

Dimensions

Pipe Size
2"
Length
10 1/4 in
Height
12 in
Overall Width
6 1/2 in
Overall Height
12 in
Outlet Connection Size
2 in
Inlet Connection Size
2 in

Details

Connection Type
FNPT Union x FNPT
Body Material
Bronze
Max. Pressure
300 psi
Max. Temp.
140 Degrees F
Item
Water Pressure Reducing Valve
Valve Type
Standard
Pressure Adjustment Range
25 to 75 psi
Preset Pressure Settings
50 psi
Material
Bronze
Standards
Annex G, ASSE 1003, City of Los Angeles, CSA, IAPMO R&T, NSF 61
Strainer
Yes
Application
Separate Strainer Cap Allows Clean Task to be Completed Very Rapidly
Material of Construction
Bronze
Connection
FNPT Union x FNPT
Factory Set Pressure
50 psi
Seat Material
Stainless Steel
Includes Strainer
Strainer Included
Fluid Temperature - Maximum
140 Degrees F
NSF Certifications for Food and Drinking Water
NSF 61
Union Type
Single
Operating Pressure - Maximum
300 psi
Pilot Adjustment - Maximum
75 psi
Pilot Adjustment - Minimum
25 psi
Operating Pressure - Minimum
25 psi
Coating/Lining
NSF Listed Fusion Bonded Epoxy Lining and Coating
Port Design
Full Port
Outlet Connection Type
NPT
Flow Rate - Continuous Maximum
100.1 gpm
For Media
Water
Inlet Connection Type
NPT
Inlet Connection Gender
Female
Outlet Connection Gender
Female

Description

Water Pressure Reducing Valve,2"

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
