  11. Water Pressure Reducing Valve, 2 in Pipe

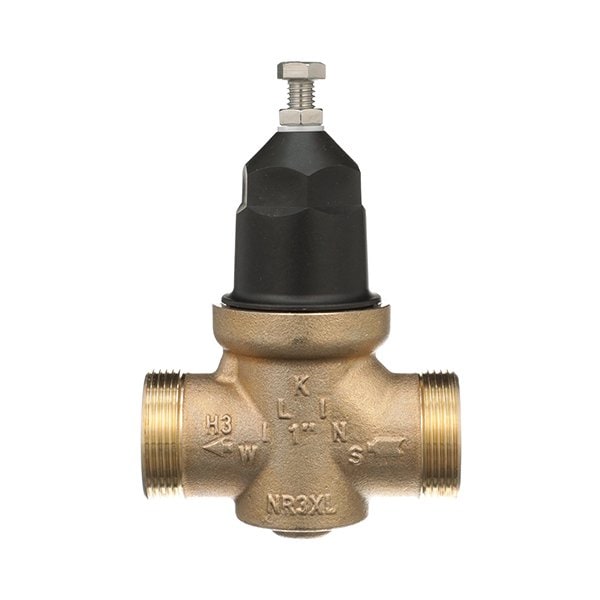

Wilkins Water Pressure Reducing Valve, 2 in Pipe 2-NR3XL - main

Water Pressure Reducing Valve, 2 in Pipe

  • Mfr # 2-NR3XL

  • Zoro # G908230360

product price: $1,294.99
/ea
Free Shipping & Returns

Key Features

Pipe Size
2 in
Connection Type
FNPT
Body Material
Cast Bronze
Max. Pressure
300 psi
Max. Temp.
140 Degrees F
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
2-NR3XL
Zoro #
G908230360
UPC #
612052069579
Country of Origin
China

Dimensions

Pipe Size
2 in
Height
8 1/2 in
Overall Height
4 13/16 in
Length
6 1/4 in
Overall Width
8 5/16 in
Outlet Connection Size
2 in
Inlet Connection Size
2 in

Details

Connection Type
FNPT
Body Material
Cast Bronze
Max. Pressure
300 psi
Max. Temp.
140 Degrees F
Item
Water Pressure Reducing Valve
Application
Commercial Use, Residential Use
Preset Pressure Settings
50 psi
Factory Set Pressure
50 psi
Compliance
ASSE 1003, City of Los Angeles, CSA, IAPMO, NSF/ANSI/CAN 6
Pressure Adjustment Range
25 to 75 psi
Strainer
Yes
Valve Type
Pressure Reducing
Seat Material
EPDM
Standards
ASSE 1003, CSA, IAPMO
Disc Material
Elastomer
Material
Low Lead Cast Bronze
For Media
Water
Fluid Temperature - Maximum
140 Degrees F
Outlet Connection Gender
Female
Port Design
Full Port
Inlet Connection Gender
Female
Pilot Adjustment - Minimum
25 psi
Pilot Adjustment - Maximum
75 psi
NSF Certifications for Food and Drinking Water
NSF 61
Operating Pressure - Maximum
300 psi
Flow Rate - Continuous Maximum
100.1 gpm
Operating Pressure - Minimum
25 psi
Union Type
Single
Inlet Connection Type
NPT
Outlet Connection Type
NPT
Coating/Lining
NSF Listed Fusion Bonded Epoxy Lining and Coating
Includes Strainer
Strainer Included

Description

Water Pressure Reducing Valve,2 in Pipe

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
