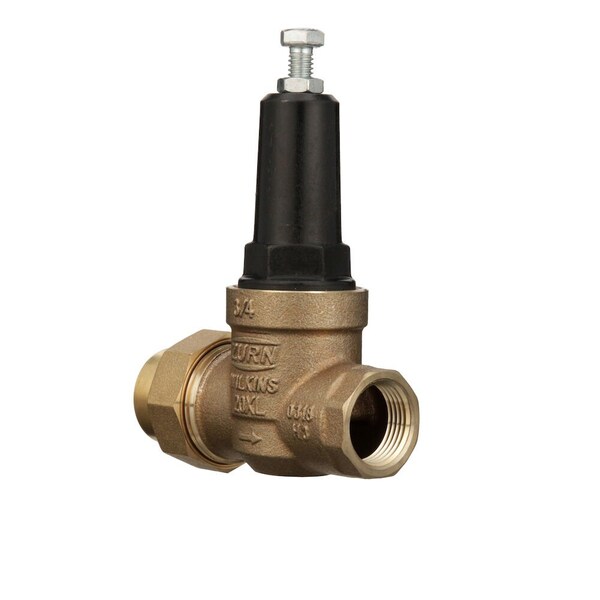

Wilkins Water Pressure Reducing Valve, 3/4" Pipe 34-20XL - main

Water Pressure Reducing Valve, 3/4" Pipe

  • Mfr # 34-20XL

  • Zoro # G2391458

product price: $157.99
/ea
Free Shipping & Returns

Key Features

Pipe Size
3/4"
Connection Type
FNPT x FNPT
Body Material
Cast Bronze
Max. Pressure
300 psi
Max. Temp.
140 Degrees F
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
34-20XL
Zoro #
G2391458
UPC #
612052300320
Country of Origin
China

Dimensions

Pipe Size
3/4"
Length
3.875
Overall Height
4 9/16 in
Height
4.5625
Overall Width
1 3/4 in
Width
1.75
Outlet Connection Size
3/4 in
Inlet Connection Size
3/4 in

Details

Connection Type
FNPT x FNPT
Body Material
Cast Bronze
Max. Pressure
300 psi
Max. Temp.
140 Degrees F
Item
Water Pressure Reducing Valve
Seat Material
EPDM
Factory Set Pressure
50 psi
Pressure Adjustment Range
25 to 75 psi
Includes
Strainer
Disc Material
Elastomer
Compliance
ASSE 1003, CSA B356, cUPC
Application
Residential;Commercial
Valve Type
Pressure Reducing
Preset Pressure Settings
50 psi
Strainer
Yes
Standards
ASSE 1003, CSA B356, cUPC, Safe Drinking Water Act Compliant
Material
Quality integral stainless steel strainer screen holds up over time
Features
Compact design and short lay length ensures ease of installation in any application from new construction to replacement
Inlet Connection Gender
Female
Pilot Adjustment - Maximum
75 psi
Pilot Adjustment - Minimum
25 psi
Outlet Connection Gender
Female
Inlet Connection Type
NPT
Coating/Lining
NSF Listed Fusion Bonded Epoxy Lining and Coating
For Media
Water
Includes Strainer
Strainer Included
Union Type
Single
NSF Certifications for Food and Drinking Water
NSF 61
Port Design
Full Port
Fluid Temperature - Maximum
140 Degrees F
Flow Rate - Continuous Maximum
25.1 gpm
Operating Pressure - Minimum
25 psi
Outlet Connection Type
NPT
Operating Pressure - Maximum
300 psi

Description

Water Pressure Reducing Valve,3/4" Pipe
