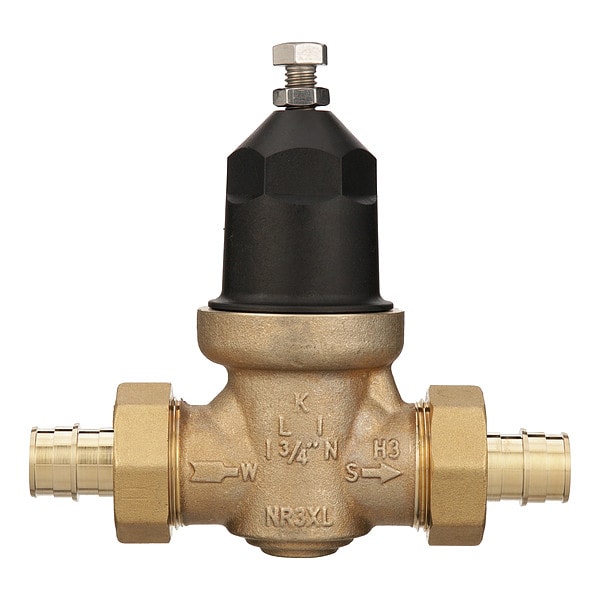

Wilkins Water Pressure Reducing Valve, 3/4" Pipe 34-NR3XLDUPEXF1960 - main

Water Pressure Reducing Valve, 3/4" Pipe

  • Mfr # 34-NR3XLDUPEXF1960

  • Zoro # G208230312

product price: $232.99
/ea
Free Shipping & Returns

Key Features

Pipe Size
3/4 in
Connection Type
Male Barbed
Body Material
Cast Bronze
Max. Pressure
400 psi
Max. Temp.
140 Degrees F
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
34-NR3XLDUPEXF1960
Zoro #
G208230312
UPC #
612052263892
Country of Origin
China

Dimensions

Pipe Size
3/4 in
Height
6 1/4 in
Overall Height
5 1/2 in
Length
5 3/8 in
Outlet Connection Size
3/4 in
Inlet Connection Size
3/4 in
Overall Width
2 13/16 in

Details

Connection Type
Male Barbed
Body Material
Cast Bronze
Max. Pressure
400 psi
Max. Temp.
140 Degrees F
Item
Water Pressure Reducing Valve
Factory Set Pressure
50 psi
Material
Low Lead Cast Bronze
Application
Commercial Use, Residential Use
Strainer
Yes
Seat Material
EPDM
Disc Material
Elastomer
Preset Pressure Settings
50 psi
Valve Type
Pressure Reducing
Pressure Adjustment Range
15 to 75 psi
Compliance
ASSE 1003, City of Los Angeles, CSA, IAPMO, NSF/ANSI/CAN 6
Standards
ASSE 1003, CSA, IAPMO
Union Type
Double
Coating/Lining
NSF Listed Fusion Bonded Epoxy Lining and Coating
Includes Strainer
Strainer Included
Inlet Connection Type
Not Available
Operating Pressure - Minimum
15 psi
Operating Pressure - Maximum
400 psi
NSF Certifications for Food and Drinking Water
NSF 61
For Media
Water
Flow Rate - Continuous Maximum
25.1 gpm
Port Design
Full Port
Pilot Adjustment - Minimum
15 psi
Fluid Temperature - Maximum
140 Degrees F
Outlet Connection Type
Not Available
Pilot Adjustment - Maximum
75 psi

Description

Water Pressure Reducing Valve,3/4" Pipe

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
