  5. Altitude Pressure Gauge, 0 to 600 psi, 4 1/2 in Dial, 1/4 in NPT, Bottom Location

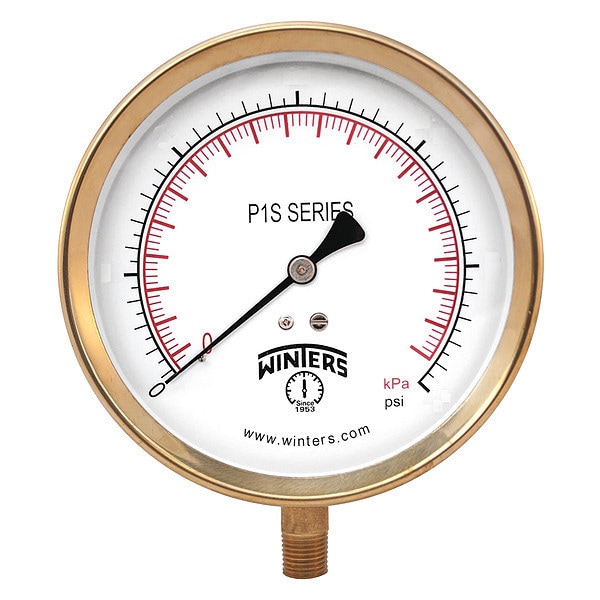

Winters Altitude Pressure Gauge, 0 to 600 psi, 4 1/2 in Dial, 1/4 in NPT, Bottom Location P1S426-ALT - main

Altitude Pressure Gauge, 0 to 600 psi, 4 1/2 in Dial, 1/4 in NPT, Bottom Location

  • Mfr # P1S426-ALT

  • Zoro # G6756165

product price:  $32.69
/ea

Key Features

Accuracy
+/-1.00%
Process Connection Location
Bottom
Process Connection Size
1/4 in
Process Connection Type
NPT
Dial Size (In.)
4 1/2 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
P1S426-ALT
Zoro #
G6756165
UPC #
-
Country of Origin
China

Dimensions

Process Connection Size
1/4 in
Dial Size (In.)
4 1/2 in
Case Diameter
5.076 in
Nominal Dial Size
4 1/2 in
Case Depth
1.275 in
Manufacturer Warranty Length
5 yr
Nominal Dial Diameter
4 1/2 in

Details

Item
Altitude Pressure Gauge
Accuracy
+/-1.00%
Process Connection Location
Bottom
Process Connection Type
NPT
Application
Plumbing
Gauge Case Material
Aluminum
Series
100
Lens Material
Glass
Primary Pressure Range
0 to 600
Primary Scale Units
ft wc
IP/NEMA Rating
IP52
Liquid-Filled Case
No
Hazardous Location Rating
Not Rated
Panel-Mountable
No
Blowout Safety Back
No
Case Color
Gray
Calibration Certificate Included
No
For Use With
Media Compatible with Bronze
Gauge Special Options
Heavy Duty
Smallest Graduation
5 psi/20 kPa
Gauge Secondary Range Values
0 to 70,000
Gauge Application
Altitude
Case Material
Aluminum
Socket Material
Brass
Connection Type
MNPT
Standards
CRN Registered, EN837-1
Pressure Gauge Type
Commercial Pressure Gauge
Pointer Material
Aluminum
Removable Bezel
No
Secondary Scale Units
gpm
Scale Type
Dual
Pointer Color
Black
Process Temperature Range
-40 Degrees to 200 Degrees F
Process Connection Gender
Male
Ambient Operating Temperature Range
-40 Degrees to 200 Degrees F, -40 Degrees to 93 Degrees C
Bezel Material
Polished Brass
Pressure Range Type
Pressure
Secondary Pressure Range
0 to 70,000
Includes Mounting Hardware
No
Sensor Material
Phosphor Bronze
Sensor Type
Bourdon Tube
Dial Color
White
Dial Face Material
Aluminum
Over-Pressure Limit
25% of Full Scale
Adjustable Pointer
No
Accuracy Scale
Full Scale
Accuracy Grade
ASME B40.100 Grade 1A
Reads Head Pressure
No
Case Finish
Polished
Freeze Resistant Movement
No
Operating Temperature Range
-40 Degrees to 200 Degrees F
Process Media Temperature - Minimum
-40 Degrees F
Case Liquid
None
Field Fillable
No
NEMA Enclosure Rating
5
IP Rating
IP52
Operating Temperature - Maximum
200 Degrees F
Process Media Temperature - Maximum
200 Degrees F
Primary Scale Pressure Measurement - Maximum
600 ft wc
Includes Calibration Certificate
No
Operating Temperature - Minimum
-40 Degrees F
Primary Scale Pressure Measurement - Minimum
0 ft wc
Compatible with Brand
Universal

Description

Altitude Pressure Gauge, Nominal Dial Size 4 1/2 in, Accuracy +/-1.00 Percent, Gauge Case Material Aluminum, Process Connection Type NPT, Process Connection Gender Male, Lens Material Glass, Process Connection Size 1/4 in, Field Fillable No, Process Connection Location Bottom, Case Color Gray, IP/NEMA Rating IP52, Primary Pressure Range 0 to 600, Dial Color White, Pressure Gauge Type Commercial Pressure Gauge, Liquid-Filled Case No, Panel-Mountable No, Socket Material Brass
